F26 Square Punch with 1/4" x 1/8" Single Keyway

F26 Square Punch with 1/4" x 1/8" Single Keyway

$67 (USD)

orCall 281-915-4382

Description

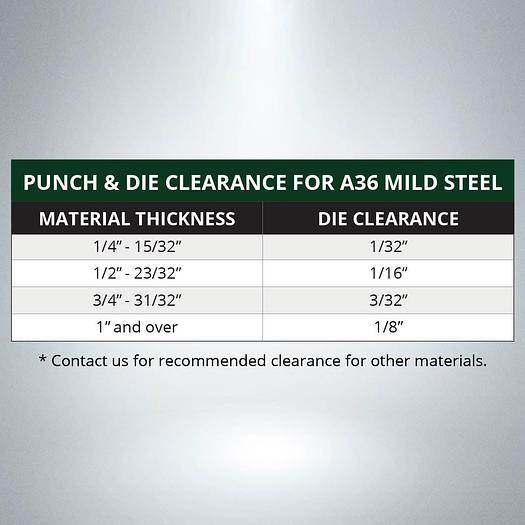

Punches are supplied with a 1/4" wide x 1/8" deep single keyway. Use 1/4" x 1/4" Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F62 Square Dies. *For carriage bolt and square tube applications we recommend using a square punch 1/32" larger than the size of carriage bolt or square tube. Dimensions: Punch & Die Clearance: Use chart above to determine recommended die clearance. The punch and die should NOT be the same size. Note: Material thickness should not exceed punch size. Cross Reference: F26 Punch AP-128, CST-228, GFM-45, PIR-EF Proudly Made in the USA 5/16" 11/32" 3/8" 13/32" 7/16" 15/32" 1/2" 17/32" 9/16" 19/32" 5/8" 21/32" 11/16" 23/32" 3/4" 25/32" 13/16" 7/8" 15/16" 1" 1-1/16"

Specifications

ManufacturerCleveland Punch & Die
ConditionNew
Head diameter1.687"
Body diameter1.531"
Overall length2.687"
