1/4" x 10" Hydraulic Sheet Metal Notcher with Fixed Angle
1/4" x 10" Hydraulic Sheet Metal Notcher with Fixed Angle
Contact us for price
orCall 281-915-4382
Description

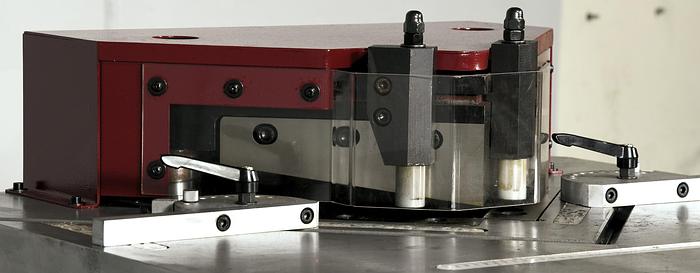

The GMC Hydraulic Notcher delivers clean and sharp corner cuts. You can notch up to a 1/4" thick sheet metal up to 12 strokes per minute. You can re-sharpen the blades repeatedly to improve the lifespan and save money. ISO 9001 certified Super large table Milled table surface with engraved scales on left and right side of the table top 12” combination hold down and stop bars All steel construction Safety finger guards (2) quick change gauges Foot pedal control Quiet hydraulic system One year warranty
Specifications
| Manufacturer | GMC |
| Model | HN-25HA |
| Condition | New |
| Max. capacity | 1/4'' Mild Steel - Stainless Steel: 3/16" |
| Min. notching thickness | 22 Ga. |
| Notching angle, fixed angle | 90 degree |
| Max. cutting lenth | 10" |
| Stroke per minute | 27 |
| Table dimensions, l x w | 33" x 27" |
| Hydraulic oil tank capacity | 9 Gal. Shell #68HD |
| Main motor | 7 1/2 HP, 3 Phase, 25A |
| Prewired | 220VAC |
| Optional | 440VAC 220V 15A |
| Machine weight | 2650 LBS |
| Machine dimensions (lxwxh) | 39" x 38" x 49" |
| Shipping dimensions, (lxwxh) | 47" x 41" x 56" |
