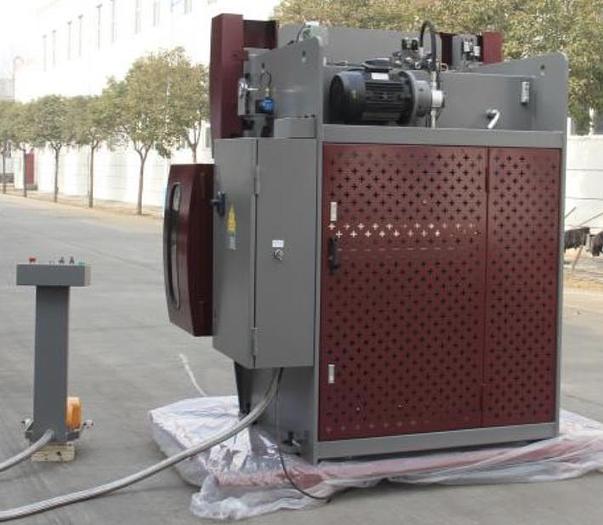

33-Ton 5’ CNC Press Brake – Small Hydraulic Press Brake
33-Ton 5’ CNC Press Brake – Small Hydraulic Press Brake
$19,850 (USD)
orCall 281-915-4382
Description
Our GMC HPB-3305CNC is a 33 ton press brake with two axis Estun Control. This is a Taiwain quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
ISO 9001 certified
Meet OSHA and CE safety standard
Easy-to-use programmable Estun E21 control
Easy programming, stores 40 programs
Estun E21 control keep a pice count for large production run
Japan Yaskawa drive
Precision ball screws for 24” back gauge
Germany Rexroth hydraulic system
Schneider electrical components
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with E21 screen, control panel and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts
Specifications
| Manufacturer | GMC |
| Condition | New |
| Maximum pressure | 33 Tons |
| Bending lenght capacity | 63" (5'3") |
| Distance between uprights (housing) | 51" |
| Ram stroke travel | 4" |
| Cylinder travel adjustment (max) | 2" |
| Table width | 6" |
| Distance between table and ram | 13-1/4" |
| Throat depth | 8" |
| Back gauge distance | 21" |
| Back gauge repeatability | .008" |
| Y-axis repeatability | .008" |
| Approach speed, inch / second | 3.5” |
| Working speed, inch / second | 0.39” |
| Return speed, inch / second | 2.75” |
| Main motor | 7-1/2 HP, 3 Phase 30 AMP; Prewired: 220VAC (+/- 10%) |
| Motor for back gauge | 1 HP, 3 Phase; 220VAC (+/- 10%) |
| Motor for bending angle setting | 1/2HP, 3 Phase; 220VAC, (+/- 10%) |
| Hydraulic oil tank capacity | 20 Gal. |
| Recommended oil | Hydraulic Oil Shell #68HD |
| Machine weight | 5,350 LBS |
| Machine size, l x w x h | 91"x56"x87” |
| Shipping dimensions | 91"x56"x87" |
