10' x 14 Ga. Mechanical Shear - Shearing Machine

10' x 14 Ga. Mechanical Shear - Shearing Machine

$21,850 (USD)

orCall 281-915-4382

Description

Shop our 10 foot mechanical shears that are capable of cutting up to 14 gauge mild steel and 18 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop. ISO 9001 certified American design and Taiwan quality machine HD all steel construction for maximum rigidity Precision driven gearbox Full length 26 strokes per minute 60” long squaring arm with inch / mm scale Spring hold-downs High grade carbon/chrome alloy steel blades and hardened to 62 hrc, 2-edge indexable upper blade and 4-edge indexable bottom blade Full length with full view finger guard Front supports and (2) side gauges Safety type foot pedal control Jog, single continuous auto operation modes One year warranty for parts

Specifications

ManufacturerGMC
ConditionNew
Cutting capacity mild steel 10' x 14Ga.
Stainless steel 10' x 18Ga.
Blade lenght 10'1"
Strokes per minute 26
Worktable height 30-1/2"
Front support arm 24"

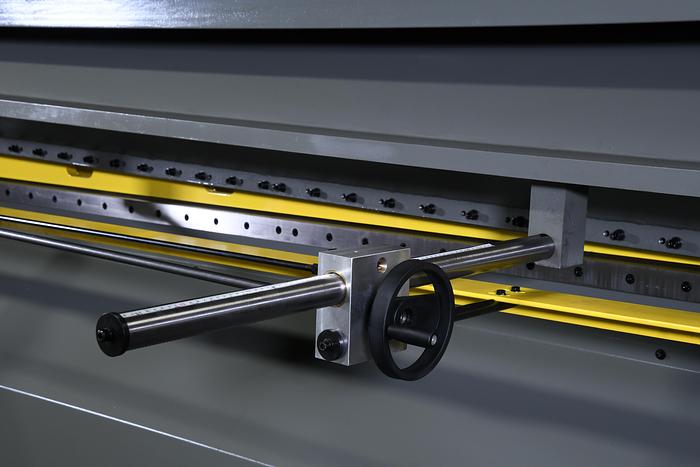

Back gauge 26" Manual Back gauge
Blade rake angle 2.0 Degree
Main motor 7 1/2 HP, 220V/25A - 440V/15A, 3 Phase
Machine weight 7,280 LBS
Machine dimensions 147" x 57" x 53"
