48" Box and Pan Brake, Metal Finger Brake
48" Box and Pan Brake, Metal Finger Brake
$3,950 (USD)
orCall 281-915-4382
Description
The BB-412-6HD manual box and pan brake can make a 6" box in depth and has a 48" length capacity. Can bend up to 12 gauge mild steel or lighter. Our 48" metal finger brake is compact and will be a perfect addition to any metal fabrication shop. ***Compared to Baileigh's Finger Brake BB-44812
ISO 9002 certified
1-year parts only warranty
Bend up to 12 gauge mild steel x 48" in length (compact)
Large 1-9/16” beam opening, adjustable
135 degree bend angle capacity with built in scale
2 - handwheels on the rear to ajust the gap
1” beam adjustment (front and back)
Hem light gauge material 26 Ga. or thinner
2 - 30 lbs. adjustable counterweights
Includes 9 fingers total: (measures 49")
2 - 2"
4 - 3"
2 - 4"
1 - 25"

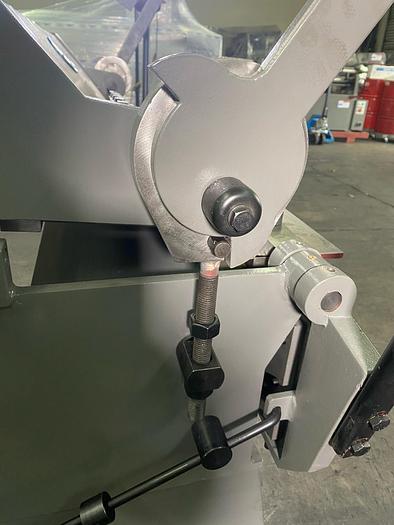

1 - Simple stop rod is included to make repeat bends
All steel heavy body construction with extra heavy tie rod for minimum deflection
Specifications
| Manufacturer | GMC |
| Condition | New |
| Bending capacity in mild steel | 12 Ga. |
| Bending capacity in stainless steel | 16 Ga. |
| Max. hemming thickness for mild steel | 26 Ga. |
| Max. box depth | 6" |
| Bending length capacity | 4’ |
| Bending angle, degree | 0-135 |
| Beam adjustment, front and back | 1" |
| Minimum reserve bend | 1/2" |
| Manual clamping | Standard |
| Beam opening | 1-9/16" |
| Net weight | 1,150 lbs. |
| Shipping weight | 1,265 lbs. |
| Machine dimensions | 82" x 32" x 69" |
| Shipping dimensions | 67” x 30” x 38” |
