SR20K Round Punch
SR20K Round Punch
$20.50 (USD)
orCall 281-915-4382
Description
Punches are sold with Snap Ring. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F59 and F155 Round Dies.
Dimensions:

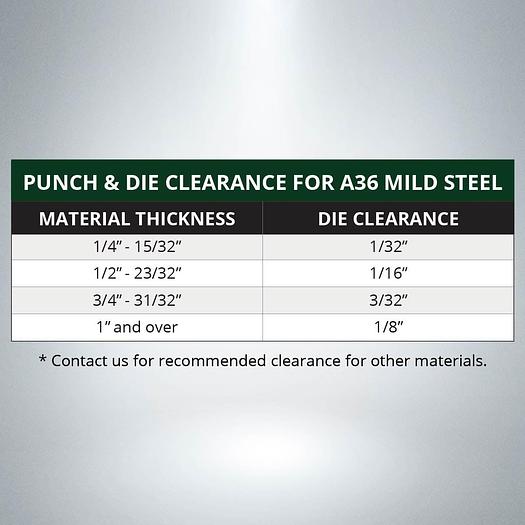

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note:
Material thickness should not exceed punch size.
Cross Reference:
SR20K Punch
AP-190, CST-DVP/UHP, GFM-150/151, PIR-BF, SCOT-20
Proudly Made in the USA
1/8"
5/32"
3/16"
7/32"
1/4"
9/32"
5/16"
11/32"
3/8"
13/32"
7/16"
15/32"
1/2"
17/32"
9/16"
19/32"
5/8"
21/32"
11/16"
23/32"
3/4"
25/32"
13/16"
27/32"
7/8"
29/32"
15/16"
31/32"
1"
1-1/32"
1-1/16"
1-3/32"
1-1/8"
1-5/32"
1-3/16"
1-7/32"
1-1/4"
Specifications
| Manufacturer | Cleveland Punch & Die |
| Condition | New |
| Body diameter | 1.000" |
| Overall length | 3.250" |
