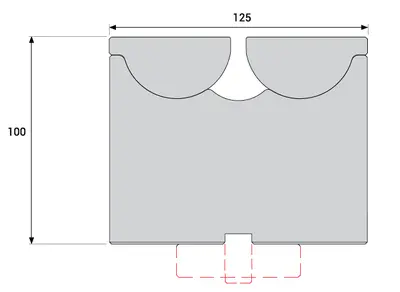

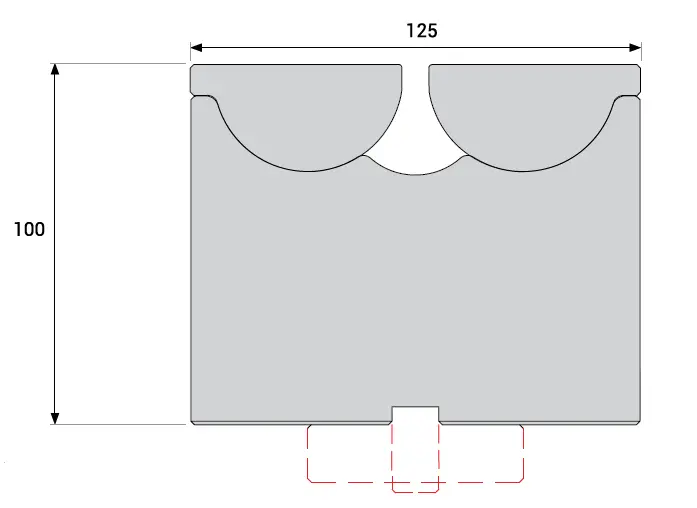

Item # RVM-3.5, Model 3.5 Rolla-V Press Brake Dies

Description

Tang Fittings
Available to suit all manufacturers' machine

Optional inserts can be hardened up to 70 HRC on request.

Available with any base or Tang Fitting
Solid Length
250 mm
500 mm
Tang Size
12.7 mm
13 mm
60 mm
12.7 mm Offset
Tonnage Capacity
250 T/m
84 T/ft
Material Thickness
6.0 to 10.0 mm
0.236 to 0.394 in
Minimum Bending Angle
75 º
Minimum Outside Flange
39.0 mm
1.535 in
Maximum Outside Radius at 90 Degree Angle
20.0 mm
0.787 in
Maximum Material Thickness
10 mm
0.394 in
Equivalent V Size
55 mm
2.165 in
Solid Weight of 500 Millimeter (mm)
46.7 kg
103 lb
Solid Weight of 250 Millimeter (mm)
23.4 kg
52 lb
Style
Fixed
Note
Note
Please remember to order your required Tang.
