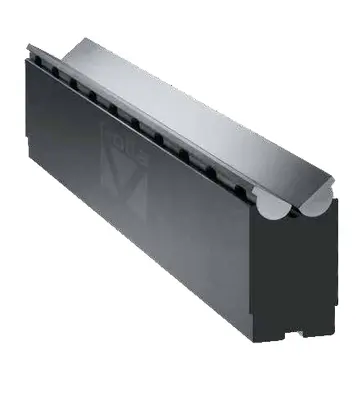

Item # RVM-2.5, Model 2.5 Rolla-V Press Brake Dies

Description

Optional inserts can be hardened up to 70 HRC on request.
Tonnage Capacity
250 T/m
84 T/ft
Material Thickness
5.0 mm
0.236 in
Standard Lengths1
500 mm
250 mm
Tang Size
12.7 mm
13 mm
60 mm
12.7 mm Offset
Minimum Bending Angle
46 º
Minimum Outside Flange
18.6 mm
0.732 in
Maximum Outside Radius at 90 Degree Angle
13.2 mm
0.520 in
Maximum Material Thickness
5 mm
0.197 in
Equivalent V Size
25.17 mm
1.0 in
Solid Length
100 mm
250 mm
500 mm
Solid Weight of 500 Millimeter (mm)
22.0 kg
48 lb
Solid Weight of 100 Millimeter (mm)
4.4 kg
10 lb
Sectionalized Length2
470 mm
Sectionalized Weight
21.0 kg
46 lb
Style
Fixed
