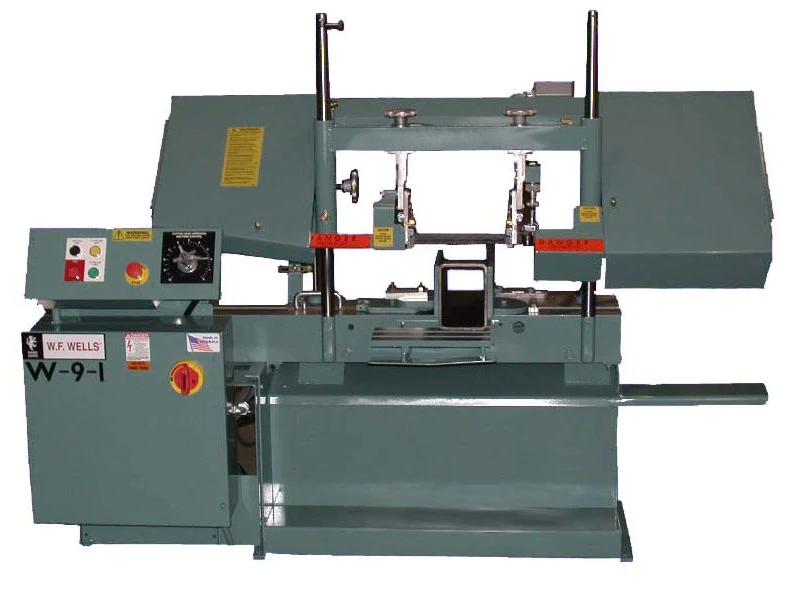

Model W-9-1
Have one to sell?
ConditionNew
1 available
New
Casters (changes work height to 29-1/2”)
Automatic Length Stop Assembly
Discharge Table, 20″ W x 48″ L (with Length Stop Assy)
Work Light, Wired In
Blade Tension Indicator
Manual Air Vise
Air Holddown
Air Vise/Holddown Combined
Blade Break/Stall Switch
Stock Stand, 6″ Roller
Stock Stand, 12″ Roller
AC Vector Drive
Free Standing Roller Stock Conveyors, 6″ Centers:
18″ X 5′ X 2,500 lbs Cap. Distributed Weight
18″ X 10′ X 5,000 lbs Cap. Distributed Weight
For Automatics see W-914A-CNC
Consult Factory For Additional Accessories
*Prices and specifications subject to change without notice
Rectangular at 45deg. 9″ High X 8″ Wide, Round at 45deg. 8″ Dia.
Voltage
230-60-1
208-60-3
230-60-3
460-60-3
575-60-3 (2hp)
Capacity: Rectangular at 90deg. 9″ High x 17″ Wide, Round at 90deg. 9″ Dia.
Weight capacity: 2,000 lbs
Blade speed: 70-380 SFPM
Blade size: 1″ X .035″ X 11′-6″
Sawing feed: Variable, Hydraulic
Blade guide: Carbide with Backup Rollers
Blade tension: Manual
Bandwheel size: 14½”
Vise: Manual
Blade drive: 3HP, 3ph, 1½ HP, 1ph
Sawing force: 30-120 lbs
Coolant capacity: 10 Gallons
Hydraulic capacity: ¾ Gallon Capacity
Hydraulic drive: ⅓ HP Motor
Work height: 26″
Shipping weight: 990 lbs
Machine dimensions: 81″ Length x 43″ Width x 63″ Height
Electrics: Wired to NFPA 79 Machine Tool Standards
