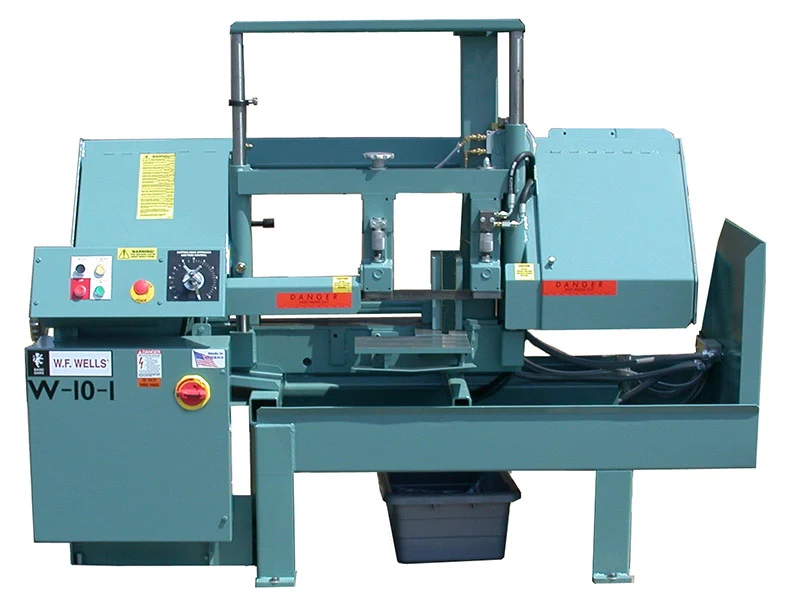

Model W-10-1
Have one to sell?
ConditionNew
1 available
New
Casters
Automatic Length Stop Assembly
Discharge Worktable, 20″ W x 48″ L with Stock Stop
Work Light, Wired In
Manual Air Vise
Blade Break/Stall Switch
Stock Stand, 6″ Wide (Heavy duty)
Stock Stand, 12″ Wide (Heavy duty)
High Speed AC Drive (400-3000 SFPM)
Free Standing Roller Stock Conveyors, 6″ Centers:
18″ X 5′ X 2,500 lbs Cap. Distributed Weight
18″ X 10′ X 5,000 lbs Cap. Distributed Weight
Rectangular at 45° 10″ High X 7½” Wide, Round at 45° 7½” Dia.
Voltage
208-60-3
230-60-3
460-60-3
575-60-3 (2HP)
Capacity: Rectangular at 90° 10″ High x 17″ Wide, Round at 90° 10″ Dia.
Weight capacity: 5,000 lbs
Blade speed: 60-425 SFPM
Blade size: 1″ X .035″ X 11′-11″
Sawing feed: Variable, Hydraulic
Blade guide: Carbide Block
Blade tension: Manual with Indicator
Bandwheel size: 14½”
Vise: Manual
Blade drive: 5 HP, 3ph, AC Vector Drive
Sawing force: 30-120 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: ¾ Gallon
Hydraulic drive: ⅓ HP Motor
Work height: 26″
Shipping weight: 1,400 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine dimensions: 97″ Length x 49″ Width x 65″ Height
