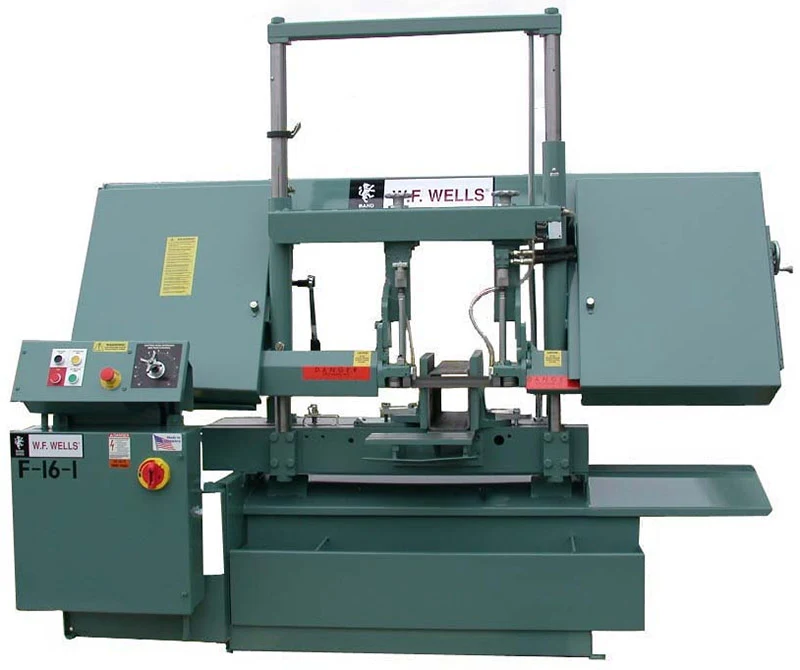

Model F-16-1
Have one to sell?
ConditionNew
1 available
New
Automatic Length Stop Assembly
Discharge Worktable, 20″ W x 48″ L with Stock Stop
Work Light, Wired In
Air Vise, Manual
Air Holddown
Air Vise/Holddown Combined
Blade Break/Stall Switch
Chip Conveyor, Electric Auger Style
21″ x 10′ Powered Conveyor, Electric
High Speed Drive & Guides (1″ Blade) 400-3000 SFPM
Free Standing Roller Stock Conveyors, 6″ Centers:
18″ X 5′ X 2,500 lbs Cap. Distributed Weight
18″ X 10′ X 5,000 lbs Cap. Distributed Weight
21” X 5’X 5,000 lbs Cap. Distributed Weight
21″ X 10′ X 10,000 lbs Cap. Distributed Weight
For Automatics see F-16-1A CNC
Rectangular at 45° 16″ High X 9″ Wide, Round at 45° 9″ Diameter
Voltage
208-60-3
230-60-3
460-60-3
575-60-3 (5HP)
Capacity: Rectangular at 90° 16″ High x 20″ Wide, Round at 90° 16″ Diameter
Weight capacity: 5,000 lbs
Blade speed: 60-425 SFPM
Blade size: 1¼” X .042″ X 15′
Blade drive: 7½ HP, 3ph, AC Vector Drive 230-60-3
Sawing force: 30-120 lbs 460-60-3
Coolant capacity: 15 Gallons 575-60-3 (5 HP)
Hydraulic capacity: ¾ Gallon
Hydraulic drive: ⅓ HP Motor
Work height: 26″
Shipping weight: 2,100 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine dimensions: 97″ Length x 49″ Width x 83″ Height
Sawing feed: Variable, Hydraulic
Blade guide: Rollers and Carbide Side Blocks
Blade tension: Manual with Indicator
Bandwheel size: 20″ Voltage
Vise: Manual, 8-1/2” 208-60-3
