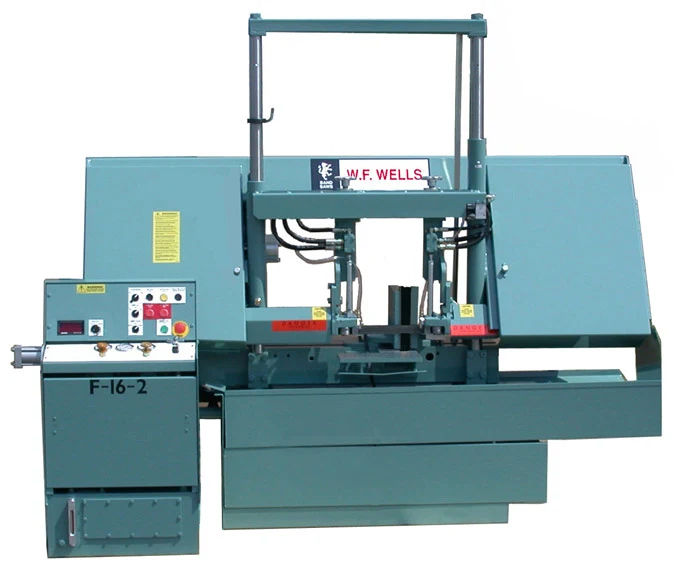

Model F-16-2
Have one to sell?
ConditionNew
1 available
New
Automatic Length Stop Assembly
Discharge Worktable, 20″ W x 48″ L with Stock Stop
Work Light, Wired In
Blade Break/Stall Switch
Hydraulic Chip Conveyor
Hydraulic Holddown, Saw Vise
Hydraulic Swivel Base with Miter Vise (See M-16-2)
Hydraulic Powered Conveyor 21″ X 10′
High Speed Drive & Guides (1″ Blade) 400-3000 SFPM
Hour Meter
Free Standing Roller Stock Conveyors, 6″ Centers:
18″ X 5′ X 2,500 lbs Cap. Distributed Weight
18″ X 10′ X 5,000 lbs Cap. Distributed Weight
21″ X 5′ X 5,000 lbs Cap. Distributed Weight
21″ X 10′ X 10,000 lbs Cap. Distributed Weight
Rectangular at 45° 16″ High X 9″ Wide, Round at 45° 9″ Diameter
Voltage
208-60-3
230-60-3
460-60-3
575-60-3 (5HP)
Capacity: Rectangular at 90° 16″ High x 20″ Wide, Round at 90° 16″ Diameter
Weight capacity: 5,000 lbs
Blade speed: 60-425 SFPM
Blade size: 1¼” X .042″ X 15′
Blade guide: Rollers and Carbide Side Blocks
Blade tension: Hydraulic
Bandwheel size: 20″
Vise: Full Stroke Hydraulic, 8-1/2”
Blade drive: 7½ HP, AC Vector Drive
Sawing force: 0-750 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 2 HP Motor
Work height: 26″
Shipping weight: 2,450 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine dimensions: 97″ Length x 49″ Width x 83″ Height
