Model F-16-3
Have one to sell?
ConditionNew
1 available
New
Discharge Worktable, 22″ W x 48″ L with Stock Stop
Work Light, Wired In
Blade Break/Stall Switch
Hydraulic Chip Conveyor, Auger Style
Hydraulic Holddown, Saw Vise
Hydraulic Powered Conveyor 21″ X 10′
High Speed Drive & Guides (1¼” Blade) 400-3000 SFPM
Free Standing Non-Powered Conveyors, 6″ Centers
21” X 5’ X 5,000 lbs Cap. Distributed Weight
21” X 10’ X 10,000 lbs Cap. Distributed Weight

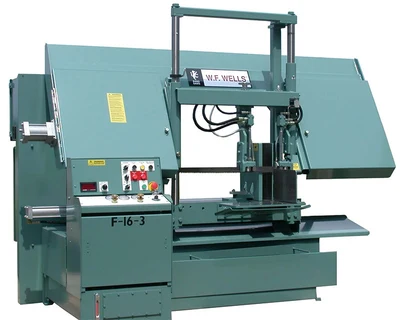

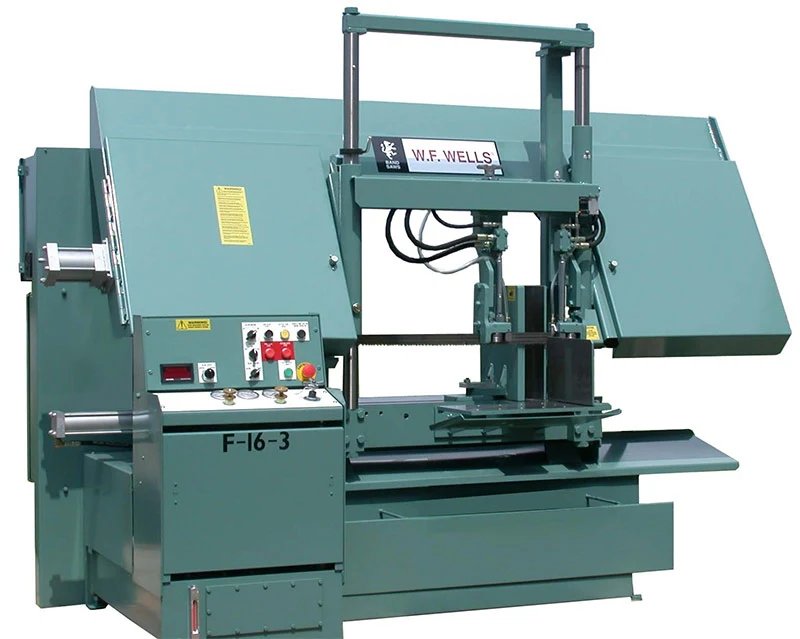

F-16-3-front

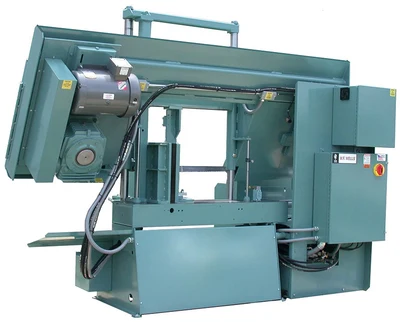

F-16-3-back
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: Rectangular at 90° 17″ High x 20″ Wide, Round at 90° 17″ Diameter
Weight capacity: 5,000 lbs
Blade speed: 60-500 SFPM
Blade size: 1½” X .050″ X 16′ 8″
Blade guide: Carbide with Roller Backup
Blade tension: Hydraulic
Bandwheel size: 22″
Vise: Full Stroke Hydraulic
Blade drive: 10 HP, AC Vector Drive
Sawing force: 0-750 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 2 HP Motor
Work height: 35″
Shipping weight: 3,200 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine dimensions: 101″ Length x 50″ Width x 88″ Height
