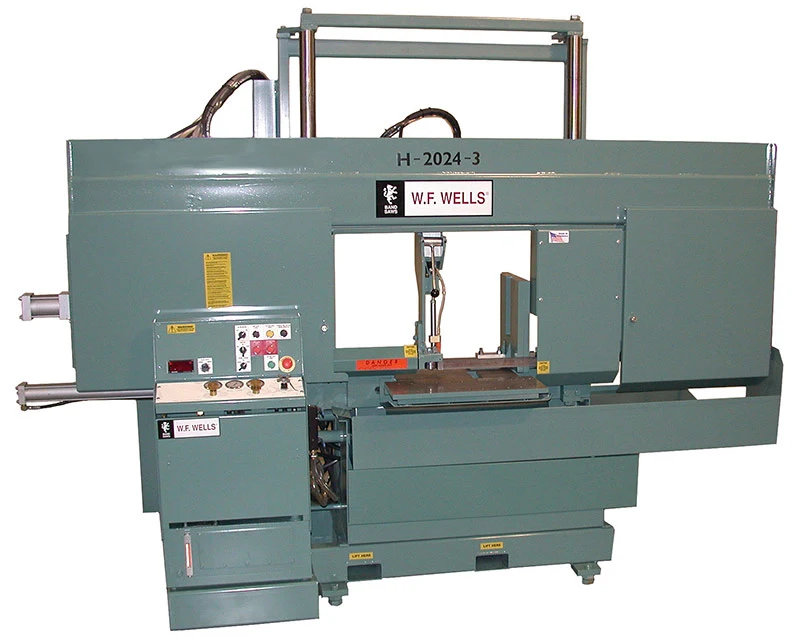

Model H-2024-3
Have one to sell?
ConditionNew
1 available
New
Hydraulic Holddown, Manual
Automatic Length Stop Assembly
Discharge Worktable, 20” X 48” L with Stock Stop
Discharge Worktable, 24” X 48” L with Stock Stop
Work Light, Wired In
Blade Break/Stall Switch
Hydraulic Chip Conveyor, Auger Style
High Speed Drive & Guides (1-¼” Blade) 400-3000 SFPM
Free Standing Roller Stock Conveyors, 6″ Centers:
21″ X 5′ X 5,000 lbs Cap. Distributed Weight
21″ X 10′ X 10,000 lbs Cap. Distributed Weight
24” X 5’ X 5,000 lbs Cap. Distributed Weight
24” X 10’ X 10,000 lbs Cap. Distributed Weight
21″ X 10′ Powered Conveyor, Hydraulic
24” Powered Conveyor
H-2024-3
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: Rectangular @ 90° 20″ H x 24″ W, Round at 90° 20″ Diameter
Weight capacity: 5,000 lbs
Blade speed: 60-500 SFPM
Blade size: 1½” X .050″ X 20′ 0”
Blade guide: Roller Guides with Carbide Inserts
Blade tension: Hydraulic
Bandwheel size: 22″
Vise: Full Stroke Hydraulic, 15”
Blade drive: 10 HP, AC Vector Drive
Sawing force: 0-750 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 2 HP Motor
Work height: 35″
Shipping weight: 3,900 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Shipping dimensions: 103” L x 50’W X 93”H
