Model H-2024-1
Have one to sell?
ConditionNew
1 available
New
-STANDARD EQUIPMENT-
-1 1/4" Bi-Metal Blade
-Rollers and Carbide Side Blocks
-Manual Vise Operation
-Manually Controlled Blade Tension
-Blade Tension Indicator
-Semi-Auto Operation
-Build-In Coolant System
-45 Deg. Swiveling Vise
-Blade Powered Rotary Cleaning Brush
-TEFC Motors
-Fused Disconnected with Lock-Out
-NFPA-79 Electronics
-Automatic Out-of-Stock Shutdown
-Quick and Easy Blade Speed Change
-Feed Pressure Monitor/Regulator
-All Safety Guards
-Operator Manual and Parts List

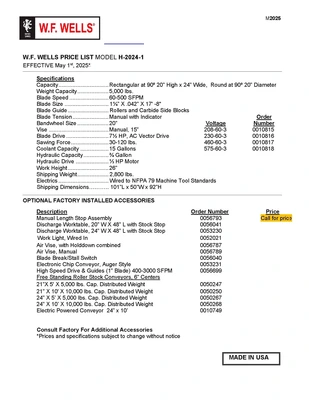

Capacity................Rectangular @ 90 degree 20" H x 24" W, Round @ 90 degree 20" Diameter
Weight Capacity.........5,000 lbs.
Blade Speed.............60-500 SFPM
Blade Size..............1 1/4 x .042 x 17'-8"
Blade Guide.............Roller and Carbide Side Blocks
Blade Tension...........Manual with Indicator
Bandwheel Size..........20"
Vise....................Manual 15"
Blade Drive.............7 1/2 HP, AC Vector Drive
Sawing Force............30-120 lbs.
Coolant Capacity........15 Gallons
Hydraulic Capacity......3/4 Gallon
Hydraulic Drive.........1/3 HP Motor
Work Height.............26"
Shipping Weight.........2,800 lbs.
Electronics.............Wired to NFPA 79 Machine Tool Standards
* Specifications subject to change without notice
