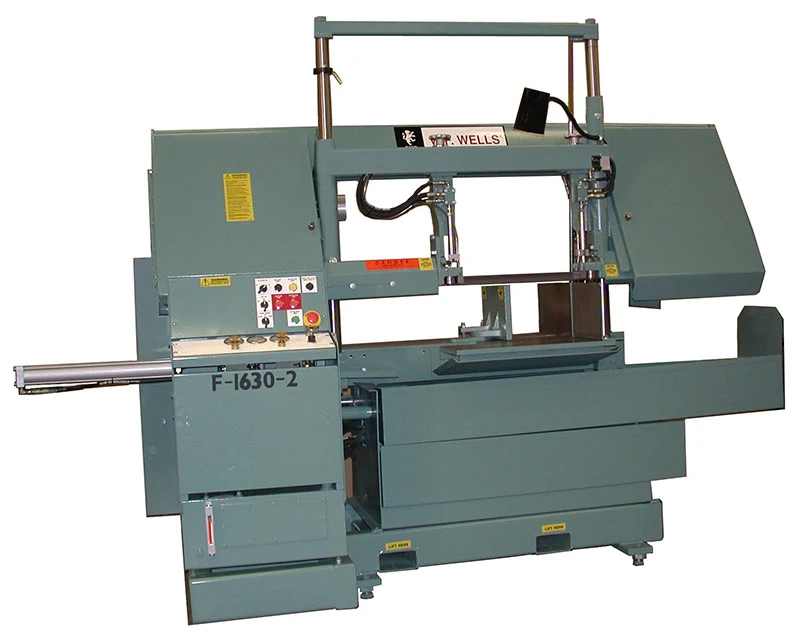

Model F-1630-2
Have one to sell?
ConditionNew
1 available
New
Automatic Length Stop Assembly
Discharge Worktable, 20″ W x 48″ L with Stock Stop
Discharge Worktable, 30″ W x 48″ L with Stock Stop
Work Light, Wired In
Blade Break/Stall Switch
Hydraulic Chip Conveyor, Auger Style
Hydraulic Holddown, Saw Vise
High Speed Drive & Guides (1″ Blade) 400-3000 SFPM
Free Standing Roller Stock Conveyors, 6″ Centers:
21″ X 5′ X 5,000 lbs Cap. Distributed Weight
21″ X 10′ X 10,000 lbs Cap. Distributed Weight
31” X 5’ X 5,000 lbs Cap. Distributed Weight
31” X 10’ X 10,000 lbs Cap. Distributed Weight
21″ x 10′ Powered Conveyor, Hydraulic
31” Powered Conveyor
Rectangular at 45º 16″ High X 13″ Wide, Round at 45º 13″ Diameter
Voltage
208-60-3
230-60-3
460-60-3
575-60-3 (5HP)
Capacity: Rectangular at 90º 16″ High x 30″ Wide, Round at 90º 16″ Diameter
Weight capacity: 5,000 lbs
Blade speed: 60-500 SFPM
Blade size: 1¼” X .042″ X 16’8″
Sawing feed: Variable, Hydraulic
Blade guide: Rollers and Carbide Side Blocks
Blade tension: Hydraulic
Bandwheel size: 20″
Vise: Hydraulic, Full Stroke, 8-1/2”
Blade drive: 7½ HP, AC Vector Drive
Work height: 35″
Shipping weight: 2,700 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine dimensions: 118″ Length x 52″ Width x 88″ Height
Sawing force: 0-750 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 2 HP Motor
