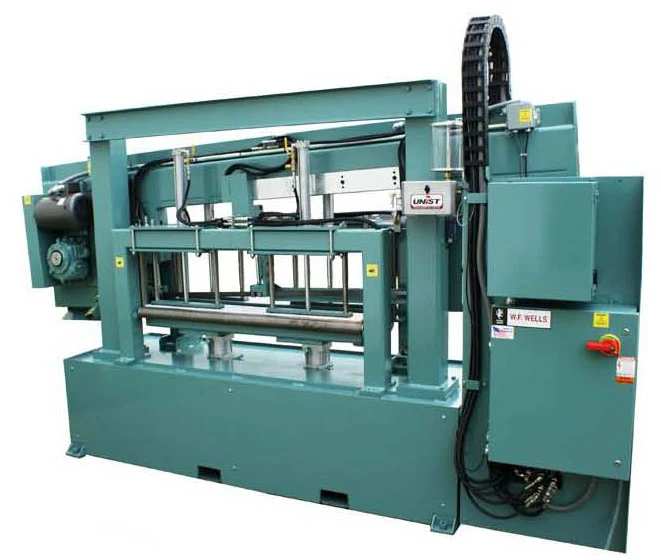

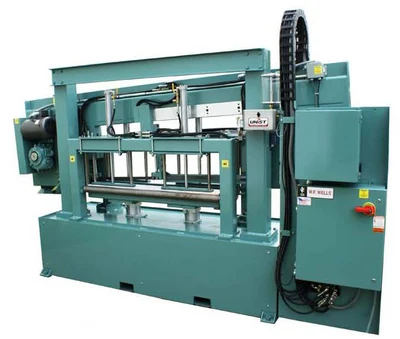

Model H-1051-2GRS Grating/Panel
Have one to sell?
ConditionNew
1 available
New
Work Light, Wired In
Blade Break/Stall Switch
Conveyors Consult Factory
Front and Back Independent with Arma Plate Surface and Vertical Stationary Datum Rollers
Hydraulic Saw Bed Raise/Lower Feature with Replaceable UHMW Wear Surface(s) and Horizontal Infeed and Outfeed Rollers
Voltage
208-60-3
230-60-3
460-60-3
Capacity: Rectangular, 10” High x 51” Wide, 3° Canted Frame
Weight capacity: 5,000 lbs – with Bed in Full Upper Position
Blade speed: 60-500 SFPM
Blade size: 1¼” X .042” X 22′ -3″ – with Easy Change Tilt Feature
Blade guide: Rollers and Carbide Side Blocks
Blade tension: Full Time Hydraulic
Bandwheel size: 20”
Vises: Vertical (4), Both Sides of Blade
Blade drive: 7½ HP, AC Vector Drive
Sawing force: 0-500 lbs
Coolant: Mist System, 32 oz Capacity
Hydraulic capacity: 20 Gallons
Hydraulic drive: 2 HP Motor – Full Time
Saw bed: 35” Work Height
Cutting head traverse: Linear Motion Ball Rail
Laser cut line: Wired In
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine dimensions: 140” Wide x 48” Deep x 86” High
Shipping weight: 4,500 lbs
Fork lift pockets in base: Side Loaded
