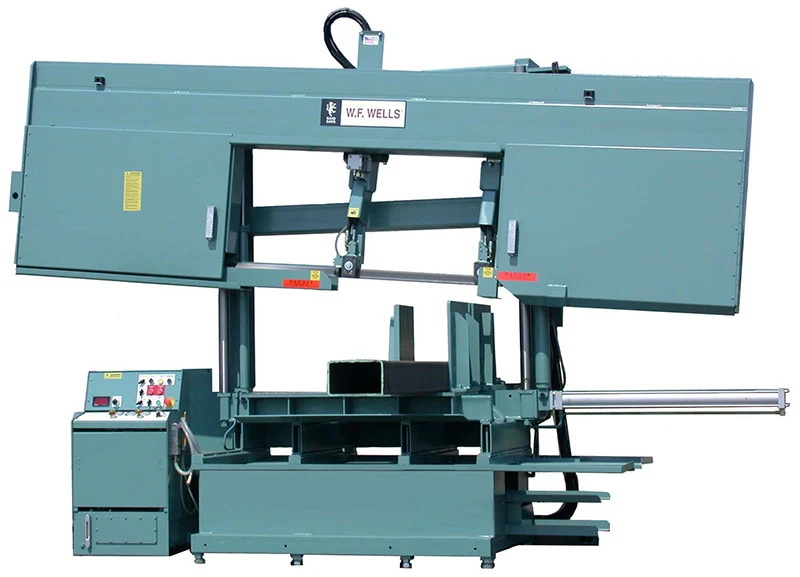

Model B-25-2C (6° Cant)
Have one to sell?
ConditionNew
1 available
New
Discharge Worktable 40″ Wide X 56″ Long
Hydraulic Chip Conveyor, Auger Style
Hydraulic Holddown, Saw Vise
Outboard Vise with Hydraulic Holddown
Outboard Vise
Hydraulic Powered Conveyor 40″ X 10′
Non-Powered Conveyor 40″ X 5′
Non-Powered Conveyor 40″ X 10′
High Speed Drive & Guides (1¼” Blade) 500-3000 SFPM
B-25-2C with Automatic Barfeed see B-25-2CA3 CNC
Rectangular at 45° 22″ High X 24″ Wide
Hydraulic Positioned Guide Arm
Hydraulic Powered Blade Brush
Blade Tension Indicator
Blade Break/Stall Switch
Electronic Door Interlocks
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: Rectangular at 90° 22″ High X 40″ Wide (25″ Round, 24″ Square)
Weight capacity: 15,000 lbs
Blade speed: 60-500 SFPM
Blade size: 1½” X .050″ X 26′ 6″
Blade guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
Blade tension: Hydraulic
Bandwheel size: 26″
Vise: Hydraulic
Blade drive: 10 HP, AC Vector Drive
Sawing force: 0-1,000 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 5 HP Motor
Work height: 34″
Outfeed table: 24″ X 40″
Vise jaw height: 17”
Shipping weight: 6,800 lbs
Shipping dimensions: 170” L x 55” W x 105” H
Electrics: Wired to NFPA 79 Machine Tool Standards
