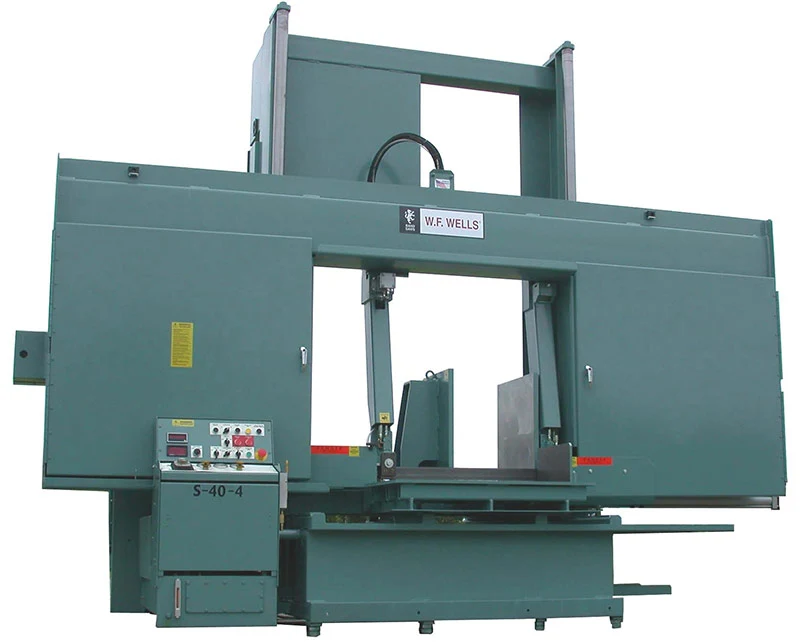

Model S-40-4
Have one to sell?
ConditionNew
1 available
New
Discharge Worktable 40″ W X 56″ L
Hydraulic Holddown, Saw Vise
Outboard Vise with Hydraulic Holddown
Outboard Vise
Hydraulic Powered Conveyor 40″ X 10′
Non-Powered Conveyor 40″ X 5′
Non-Powered Conveyor 40″ X 10′
Roller Bed Inserts (3½“ X .300″ Rollers – 2 Req’d)
High Speed Drive & Guides (1½” Blade) 400-3000 SFPM
Hydraulic Chip Conveyor
Hydraulic Powered Blade Brush
Hydraulic Guide Arm Positioning
Blade Tension Indicator
Blade Break/Stall Switch
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: Rectangular at 90° 40″ H x 40″ W @ 45° 40″ H x 24″ W
Weight capacity: 15,000 lbs
Blade speed: 60-500 SFPM
Blade size: 2⅝” X .063″ X 29′
Blade guide: Carbide Blocks, Spring Tensioned
Blade tension: Hydraulic
Bandwheel size: 42″
Vise: Hydraulic Full Stroke
Blade drive: 15 HP, AC Vector Drive
Positive sawing force: 0-1000 lbs
Coolant capacity: 20 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 5 HP Motor
Work height: 28″
Vise jaw height: 24”
Shipping weight: 10,500 lbs Shipping Dimensions (Approx) 175”L x 55”W x 130”H
Electrics: LED Blade Speed Indicator, LED Positive Feed Readout, Wired to NFPA 79 Machine Tool Standards
