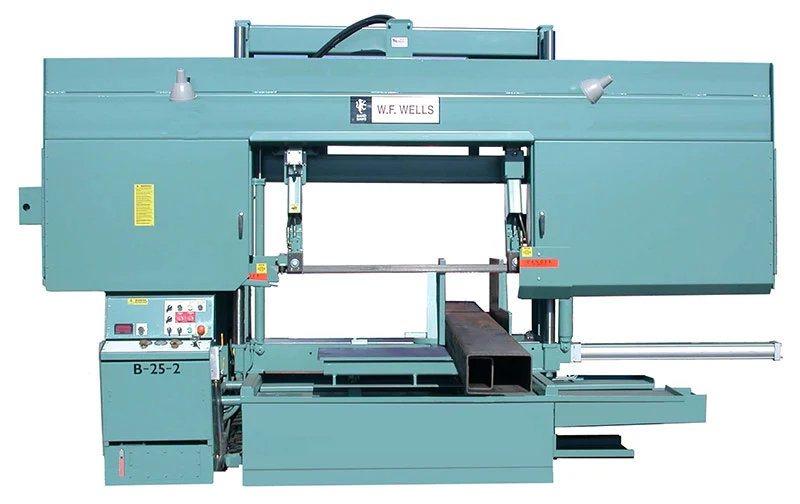

Model B-25-2
Have one to sell?
ConditionNew
1 available
New
Discharge Worktable 40″ Wide X 56″ Long
Hydraulic Chip Conveyor
Hydraulic Holddown, Saw Vise
Outboard Vise with Hydraulic Holddown
Outboard Vise
Hydraulic Powered Conveyor 40″ X 10′
High Speed Drive & Guides (1¼” Blade) 500-3000 SFPM
Non-Powered Conveyor 40″ X 5′
Non-Powered Conveyor 40″ X 10′
B-25-2 with Automatic Barfeed see B-25-2A3 CNC
B-25-2
DOWNLOAD SPEC SHEET
Rectangular at 45° 25″ High X 24″ Wide
Blade Break/Stall Switch
Hydraulic Positioned Guide Arm
Hydraulic Powered Blade Brush
Electronic Door Interlocks
Blade Tension Indicator
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: Rectangular at 90° 25″ High x 40″ Wide, Round 25.5″
Weight capacity: 15,000 lbs
Blade speed: 60-500 SFPM
Blade size: 1½” X .050″ X 26′-6″
Blade guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
Blade tension: Hydraulic
Bandwheel size: 26″
Vise: Hydraulic
Blade drive: 10 HP, AC Vector Drive
Sawing force: 0-1,000 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 5 HP Motor
Work height: 28″
Outfeed table: 24″ X 40″
Vise jaw height: 17”
Shipping weight: 6,600 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine dimensions: 170” Length x 55″ Width x 100″ Height
