Model P-50-4
Have one to sell?
ConditionNew
1 available
New
Discharge Worktable, 50″ Wide X 48″ Long
Discharge Worktable, 50″ Wide X 96″ Long
Hydraulic Holddown, Saw Vise
High Speed Drive with Roller Guides

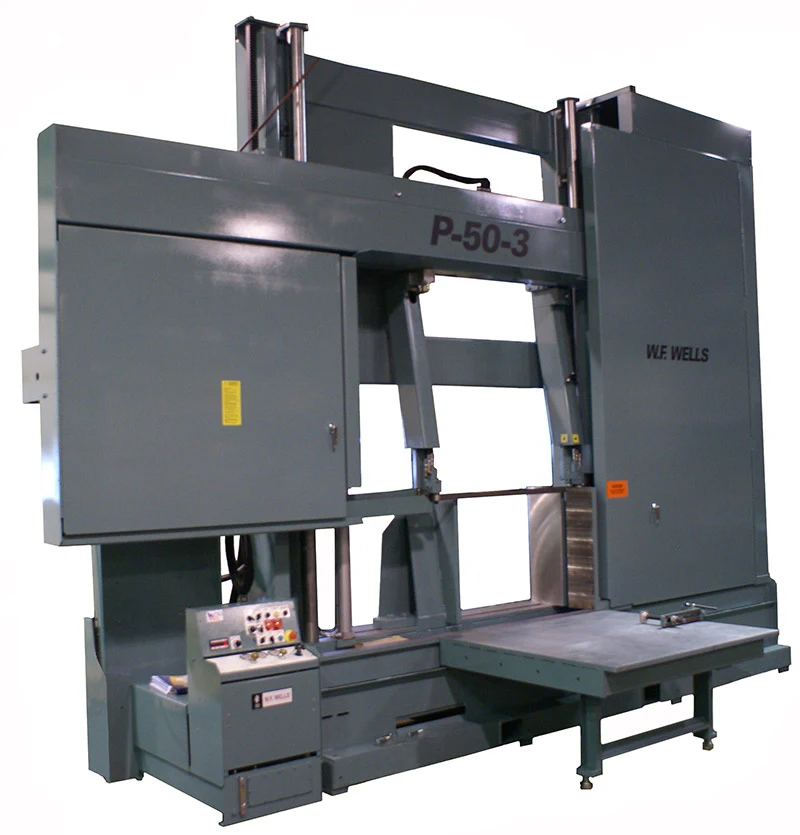

P-50-3
LED Blade Speed Indicator
LED Positive Feed Readout
Hydraulic Guide Arm Positioning
Blade Break/Stall Switch
Hydraulic Powered Blade Brush
Hydraulic Chip Conveyor, Auger Style
Wired to NFPA 79 Machine Tool Standards
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: Rectangular @ 90° 50″ High x 50″ Wide
Weight capacity: 15,000 lbs
Blade speed: 60-500 SFPM
Blade size: 2⅝” X .063″ X 37′-8″
Blade guide: Carbide Blocks, Spring Tensioned
Positive sawing force: 0-1000 lbs
Blade tension: Hydraulic, Console Controlled
Saw vise: Hydraulic Full Stroke
Blade drive: 20 HP, 3ph AC Vector Drive
Hydraulic system: 20 Gallons, 5 HP Motor
Coolant system: 60 Gallons, 10 GPM Pump
Work height: 26″
Shipping weight: 22,500 lbs
Machine dimensions: 24′ Length x 60″ Width x 13’6″ Height
Electrics: LED Blade Speed Indicator, LED Positive Feed Readout
