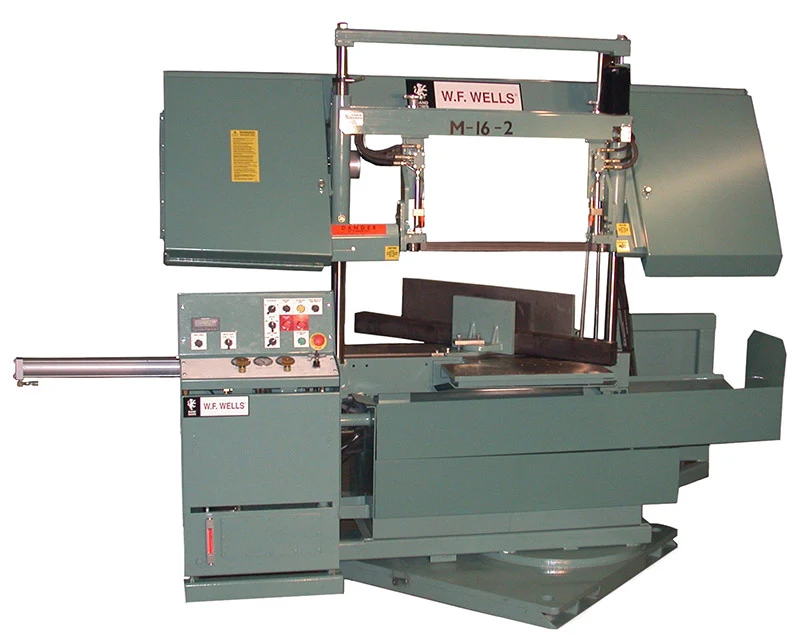

Model M-16-2
Have one to sell?
ConditionNew
1 available
New
Hydraulic Holddown, Saw Vise
Hydraulic Chip Conveyor, Auger Style
Free Standing Outboard Vise
Laser Shadow Line
Blade Break/Stall Switch
Hydraulic Powered Conveyor 21″ x 10′
Non-Powered Conveyor 21″ x 5′
Non-Powered Conveyor 21″ x 10′
Other Conveyor Options Available Upon Request – Please Contact Factory
Hydraulic Swivel Base with Miter Vise, Single Direction
Digital Angle Display
In Feed Roller, Back of Saw Bed
Electronic Door Interlocks
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: 16″ H X 26″ W @ 90°, 16″ H X 16″ W @ -45°
Weight capacity: 5,000 lbs
Blade speed: 60-500 SFPM
Blade size: 1¼” X .042″ X 16′ 8″
Blade guide: Rollers and Carbide Side Blocks
Blade tension: Hydraulic
Bandwheel size: 20″
Vise: Hydraulic
Blade drive: 7½ HP, AC Vector Drive
Sawing force: 0-750 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 2 HP Motor
Work height: 35″
Shipping weight: 3,800 Shipping Dimensions….120”L x 60”W x 90”H
Electrics: Wired to NFPA 79 Machine Tool Standards
