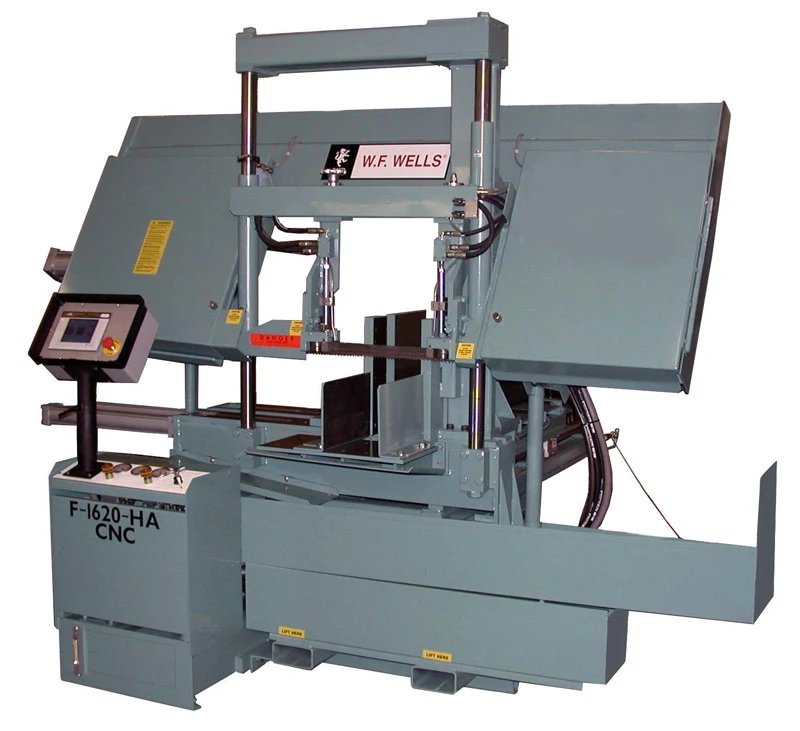

Model F-1620-HA CNC
Have one to sell?
ConditionNew
1 available
New
Hydraulic Holddown, Saw & Barfeed Vise
Hydraulic Auger Style Chip Conveyor
Discharge Worktable (20″ Wide x 48″ Long)
Work Light, Wired In
Extra Coolant Nozzle with Magnetic Base
High Speed Drive & Guides (1¼” Blade) 400-3000 SFPM
Free Standing Roller Stock Conveyors, 6″ Centers:
21″ X 5′ X 5,000 lbs Cap. Distributed Weight
21″ X 10′ X 10,000 lbs Cap. Distributed Weight
CNC Programmable Controller with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Bed and Vise Wear Strips
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: Rectangular at 90° 17″ High x 20″ Wide Round 17″ Diameter
Weight capacity: 5,000 lbs
Blade speed: 60-500 SFPM
Blade size: 1½” X .050″ X 16′ 8″
Blade guide: Roller Guides with Carbide Inserts
Vise: Hydraulic, Full Stroke, 15″ High
Bandwheel size: 22″
Blade tension: Hydraulic
Blade drive: 10 HP, AC Vector Drive
Sawing force: 0-750 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 2 HP Motor
Work height: 35″
Barfeed projection: 0-25″ CNC Controlled
Shuttle indexes: Unlimited
Projection accuracy: +/-.002″
Remnant end: 4″
Shipping weight: 4,500 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine dimensions: 104″ Length x 101″ Width x 88″ Height
