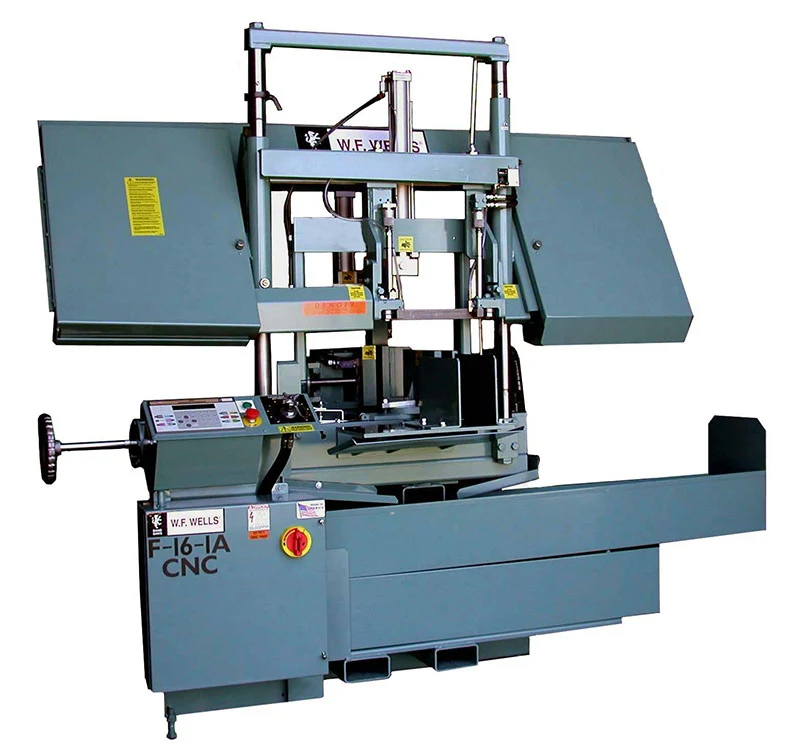

Model F-16-1A CNC
Have one to sell?
ConditionNew
1 available
New
Air Hold-down, Saw & Barfeed Vise
Electronic Auger Style Chip Conveyor
Discharge Worktable (20″ Wide x 48″ Long)
Work Light, Wired In
High Speed (1″ Blade) 400-3000 SFPM
Free Standing Roller Stock Conveyors, 6″ Centers:
18″ X 5′ X 2,500 lbs Cap Distributed Weight
18″ X 10′ X 5,000 lbs Cap. Distributed Weight
21″ X 5′ X 5,000 lbs Cap. Distributed Weight
21″ X 10′ X 10,000 lbs Cap. Distributed Weight

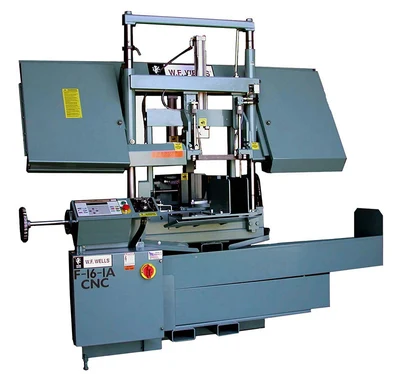

F-16-1A-CNC-front

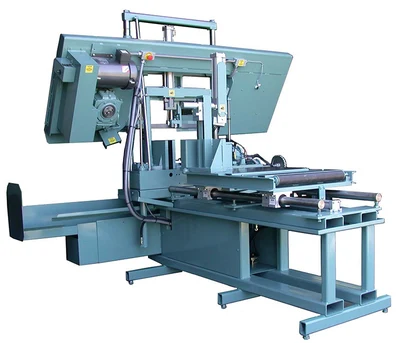

F-16-1A-CNC-rear
CNC Programmable Controller with Color Touch Screen
Machine Diagnostics & Programming Prompting
99+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Fork Lift Pockets in Base
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: Rectangular at 90° 16″ High x 18″ Wide, Round 16″ Diameter
Weight capacity: 5,000 lbs
Blade speed: 60-425 SFPM
Blade size: 1¼” X .042″ X 15′
Blade guide: Roller Guides with Carbide Inserts
Vise: Air, 8½” High
Bandwheel size: 20″
Blade tension: Manual with Indicator
Blade drive: 7½ HP Variable Speed, AC Vector
Sawing force: 30-120 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: ¾ Gallon
Hydraulic drive: ¾ HP Motor
Work height: 35″
Barfeed projection: Hydraulic 0-25″ CNC Controlled
Shuttle indexes: Unlimited
Projection accuracy: +/-.002″
Remnant end: 12″
Tipoff worktable: 19½” Wide x 15½” Deep
Shipping weight: 3,250 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine dimensions: 93″ Length x 90″ Width x 86″ Height
