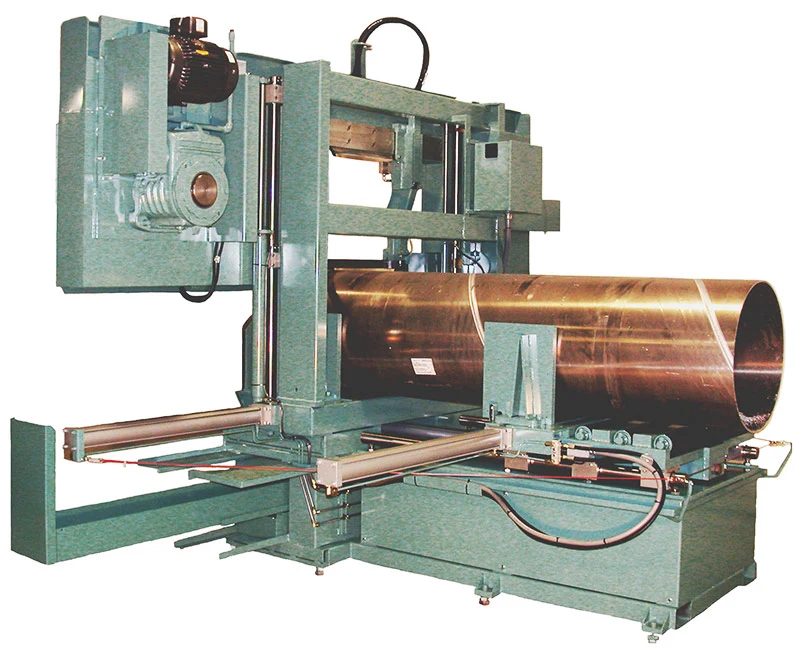

Large Capacity CNC Fully Auto with Shuttle Type Bar Feed

Machine Specifications:
Capacity: 25” High x 40” Wide, 25.5” Round
Weight Capacity: 14,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 2″ X .063″ X 26′-6″, 2⅝ optional
Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Back-up
Blade Tension: Hydraulic
Bandwheel Size: 26”
Vise: Hydraulic
Blade Drive: 15 HP, AC Vector Drive
Sawing Force: 0-1,000 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 5 HP Motor
Work Height: 35″
Outfeed Table: 12″ X 41″
Vise Jaw Height: 17″
Barfeed Projection: 0 – 36″ CNC Controlled
Projection Accuracy: +/- .002″
Shuttle Indexes: Unlimited
Remnant End: 14″
Electrics: Wired to NFPA 79 Machine Tool Standards
Hydraulic Positioned Guide Arm, Powered Blade Brush, Blade Break/Stall Switch
CNC Programmable Controlled with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Shipping Weight: 11,400
Shipping Dimensions: 170”L x 102”W x 105”H

Voltage:
208-60-3
230-60-3
460-60-3
575-60-3

Optional Accessories:
Discharge Worktable 40” Wide x 56” Long Hydraulic Chip Conveyor 0056069 $3,600.00 Hydraulic
Hydraulic Chip Conveyor
Holddown, Saw Vise
Hydraulic Holddown, Barfeed Vise
Outboard Vise with Hydraulic Holddown
Outboard Vise
Non-Powered Conveyor 40” x 5’
Non-Powered Conveyor 40” x 10’
High Speed Drive & Guides (1½” Blade) 500-3000 SFPM
