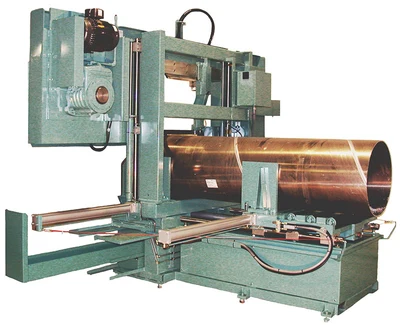

Model B-25-3A3-CNC
Have one to sell?
ConditionNew
1 available
New
Discharge Worktable 40” Wide x 56” Long Hydraulic Chip Conveyor 0056069 $3,600.00 Hydraulic
Hydraulic Chip Conveyor
Holddown, Saw Vise
Hydraulic Holddown, Barfeed Vise
Outboard Vise with Hydraulic Holddown
Outboard Vise
Non-Powered Conveyor 40” x 5’
Non-Powered Conveyor 40” x 10’
High Speed Drive & Guides (1½” Blade) 500-3000 SFPM
Hydraulic Positioned Guide Arm, Powered Blade Brush, Blade Break/Stall Switch
CNC Programmable Controlled with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: 25” High x 40” Wide, 25.5” Round
Weight capacity: 14,000 lbs
Blade speed: 60-500 SFPM
Blade size: 2″ X .063″ X 26′-6″, 2⅝ optional
Blade guide: Spring Tensioned Carbide Blocks with Idle Roller Back-up
Blade tension: Hydraulic
Bandwheel size: 26”
Vise: Hydraulic
Blade drive: 15 HP, AC Vector Drive
Sawing force: 0-1,000 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 5 HP Motor
Work height: 35″
Outfeed table: 12″ X 41″
Vise jaw height: 17″
Barfeed projection: 0 – 36″ CNC Controlled
Projection accuracy: +/- .002″
Shuttle indexes: Unlimited
Remnant end: 14″
Electrics: Wired to NFPA 79 Machine Tool Standards
Shipping weight: 11,400
Shipping dimensions: 170”L x 102”W x 105”H
