Model S-40-3A3 CNC
Have one to sell?
ConditionNew
1 available
New
Discharge Worktable 40″ Wide X 56″ Long
Hydraulic Chip Conveyor
Hydraulic Holddown, Saw Vise
Hydraulic Holddown, Barfeed Vise
Outboard Vise with Hydraulic Holddown
Outboard Vise
Non-Powered Conveyor 40″ X 5′
Non-Powered Conveyor 40″ X 10′

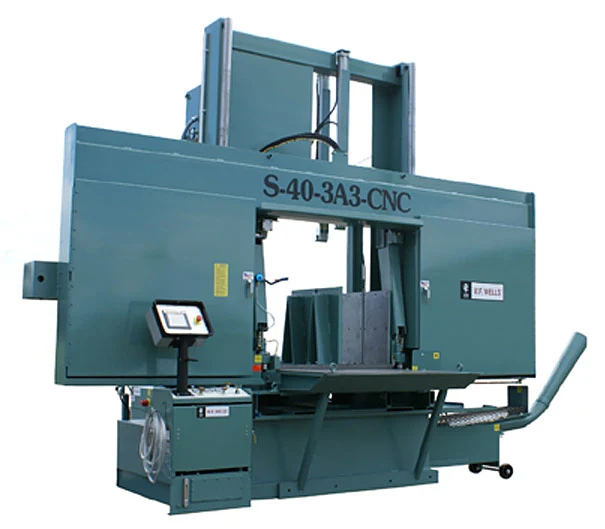

S-40-3A3-CNC-front

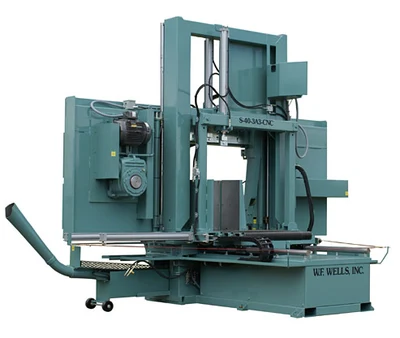

S-40-3A3-CNC-rear
DOWNLOAD SPEC SHEET
Hydraulic Positioned Guide Arm, Powered Blade Brush, Blade Break/Stall Switch
CNC Programmable Controlled with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Capacity: 40″ High x 40″ Wide
Weight capacity: 14,000 lbs
Blade speed: 60 – 500 SFPM
Blade size: 2″ X .063″ X 29′
Blade guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
Blade tension: Hydraulic
Bandwheel size: 42″
Vise: Hydraulic
Blade drive: 15 HP, AC Vector Drive
Sawing force: 0-1000 lbs
Coolant capacity: 15 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 5 HP Motor
Work height: 34″
Outfeed table: 12″ X 41″
Vise jaw height: 24″
Barfeed projection: 0-36″ CNC Controlled
Projection accuracy: +/- .002″
Shuttle indexes: Unlimited
Remnant end: 14″
Electrics: Wired to NFPA 79 Machine Tool Standards
Shipping weight: 12,200
Shipping dimensions: 175’L x 102”W x 135”H
