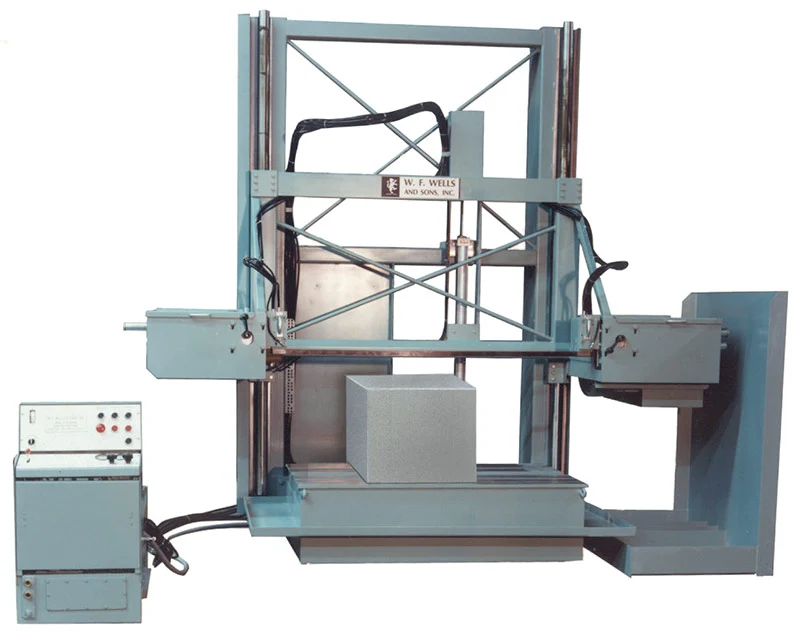

Positive Frame Feed allows the head to descend at a fixed IPM rate for optimum cutting in those high production applications where similar types of material are cut repetitively. Hydraulic down pressure moves the blade through the hardest material at a constant rate.
Voltage
208-60-3
230-60-3
460-60-3
575-60-3
Optional Accessories
High Speed Drive & Guides 330-2,000 SFPM (1½”)
Dust Collection Outlet Drive On Door
2⅝” Blade Option
50 Cycle Voltage
X-6025-4
Blade Tension Indicator
Electronic Door Interlocks
Free Standing Operator Control Station
LED Positive Feed Readout
Capacity: Rectangular at 90° 60″ High X 60″ Wide
Length of cut: 25″
Weight capacity: 20,000 lbs
Blade speed: 75-500 SFPM
Blade size: 2″ X .063″ X 26′-6″
Blade guide: Carbide Blocks with Roller Backup
Blade tension: Hydraulic Order
Bandwheel size: 26″
Vise: None
Blade drive: 15 HP, 3ph, AC Vector Drive
Positive sawing force: 0-1000 lbs
Coolant capacity: 20 Gallons
Hydraulic capacity: 20 Gallons
Hydraulic drive: 5 HP Motor
Work height: 16″
Work support: 62″ Wide x 36″ Deep
Shipping weight: 8,000 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards.
Dimensions: 13’6″ Wide x 66″ Deep x 112″ High
