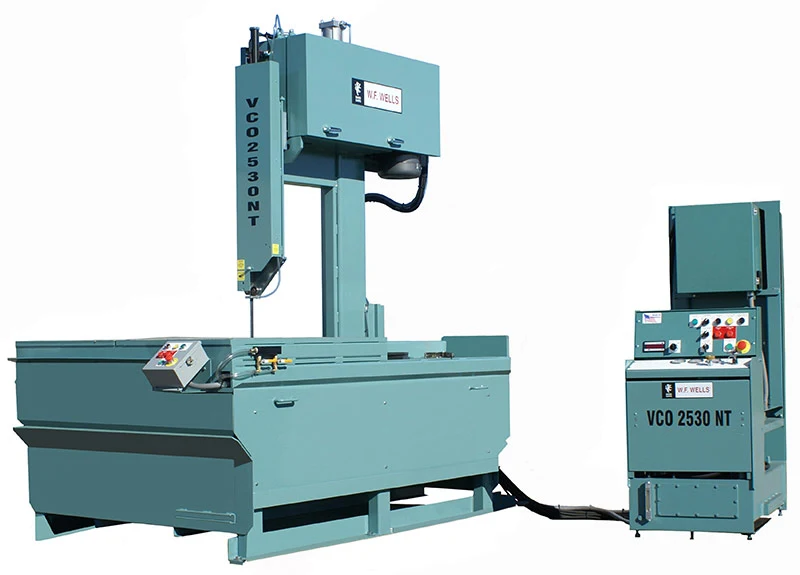

Model VCO-2530 NT

Voltage Option: 60HZ - 208v, 230v, 460v, 575v,
Capacity: Rectangular at 90deg 30" H X 25" W. At 45deg 17" H X 25" W
Weight capacity: 10,000 lbs
Blade Speed: 70-570 SFPM
Blade size: 1½" X .050" X 18' 6"
Blade guide: Carbide Blocks Spring Tensioned
Blade tension: Hydraulic, Console Controlled
Bandwheel size: 26''
Vise: Hydraulic, Full Stroke
Blade Drive: 10 HP, AC Vector Drive
Sawing Force: Variable 0-500 lbs
Coolant Capacity: 25 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 5 HP Motor
Work Height: 42"
Hydraulic Chip Conveyor: Auger Style
Blade Break: Stall Switch
Work Support: Two work lift rollers, one on each side of blade
Shipping Weight: 6,000 lbs
Electrics: Wired to NFPA 79Machine Tool Standards
