Model B-2575-3
Have one to sell?
ConditionNew
1 available
New
Standard Equipment
2” Bi-Metal Blade
AC Vector Drive
Spring Loaded Carbide Guides
Hydraulic Vise Operation
Hydraulic Blade Tension
Semi-Automatic Operation
Mist Coolant System
Blade Tension Indicator
Hyd – Powered Blade Brush
TEFC Motors
Fused Disconnect with Lock-Out
Blade Break/Stall Switch
Console Controlled Blade Speed
Feed Pressure Monitor/Regulator
Low Voltage/Overload Protection
Electronic Door Safety Interlocks
Work Lights
Hydraulic Positioned Guide Arm
All Safety Guards
Operator Manual and Parts List
Remote Operators Console

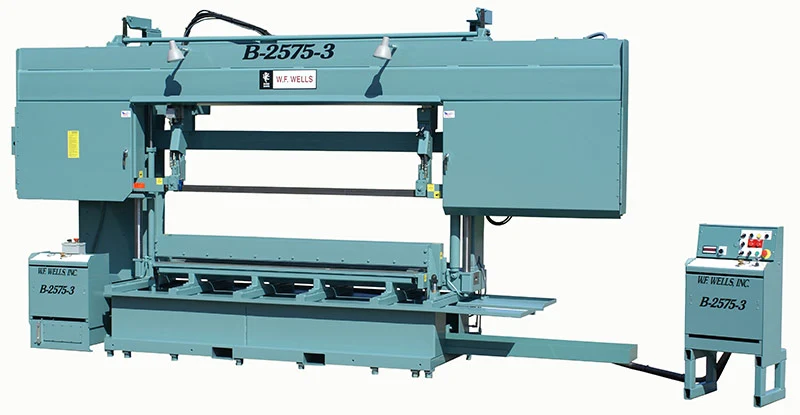

B-2575-3
Capacity: 25” High x 80” Wide
Weight capacity: 15,000 lbs
Blade speed: 60-500 SFPM
Blade size: 2” X .063” X 33’-6” (2-5/8” optional)
Blade guide: Spring Tensionied Carbide Blocks w/Idle Roller Backup
Blade tension: Hydraulic
Bandwheel size: 26″
Vise: Hydraulic 50″ Stroke (full stroke optional)
Blade drive: 15 HP, AC Vector Drive
Sawing force: 0-1000 lbs
Coolant: Spray Mist
Hydraulic capacity: 20 Gal.
Hydraulic drive: 5 HP Motor
Work height: 28″
Outfeed table: Optional
Shipping weight: 10,000 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine dimensions: 48” L x 201” W x 105” H
