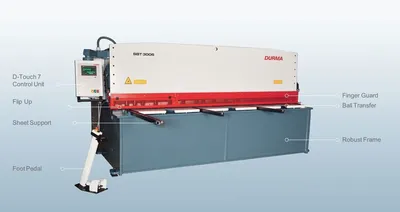

SBT Swing Beam Shear
Have one to sell?
ConditionNew
1 available
New
High technology standards, design and user-friendly interface SBT provides perfection with high standard safety, efficient solutions that strengthen your skills and add value to your company. We have reduced the cutting angle to achieve straight precision and minimum twist tolerance.
DURMA Shears have been manufactured since 1956 and have been installed and working in a wide variety of sheet metal cutting operations for many industries. Years of experience has helped us develop durable, low distortion and precise cutting machines.
SBT Series Shears today, tomorrow and forever with you.
Capacity (length x cutting capacity) 13'4""x 1/2"(4080mmx13mm)
FEATURES AND OPTIONS PRICE
NORM
CE-Norm for EU 2,434
CONTROL UNIT
D-Touch 7 Touchscreen NC Control Unit- User Friendly Standard
SAFETY
Light Curtains for Finger Protection 8,375
GAP
Throat Depth 350 mm Standard
Throat Depth 500 mm 15,051
BACK SUPPORT
Pneumatic thin sheet support device "standard" -Durma I 15,105
Sheet slider at rear 4,772
Hydraulic swing-up Back gauge 16,723
FRONT SUPPORT
Adjustable Angle stop 0-180° 2,053
Additional Support Arms
add. Support Arms L= 2 m (1 pc.) with vertical support 7,287
add. Support Arms L= 3 m (1 pc.) with vertical support 9,558
Upgrade from Standard
Support Arms L= 2 m (1 pc.) with vertical support 7,587
Support Arms L= 3 m (1 pc.) with vertical support 10,646
Squaring Arm L= 2 m (1 pc.) with vertical support 3,032
Squaring Arm L= 3 m (1 pc.) with vertical support 4,038
Squaring Arm on the right side L= 1500 mm,
with scale & T-Slot with vertical support 7,287
Ball integrated support arms 1,931
Ball integrated squaring arm (1m) 1,509
OTHER OPTIONS
Motorized blade gap adjustment from CNC 3,399
Laser Cutting Line 2,434
Spare-Blades: Standard Top and Bottom Blade (1 set) 9,041
Oil Coolant 8,933
Oil heater 775
Control Panel on opposite position (on right) 3,834
Air condition for electrical box 7,043
| 2 Support Arms 40" (1000mm) |
| Automatic Swing Up Back Gauge |
| Ball Screw Back Gauge 39" (1000mm) |
| Ball Transfer Tables |
| Bottom Blade 4 cutting edges |
| Cutting Length - quantity control |
| D-Touch 7 Touchscreen NC Control Unit |
| Rubber pads for Holddowns |
| Shadow Light Line |
| Single Point Blade Gap Adjustment |
| Squaring Arm 60" (1500mm) |
| Throat Depth 13.750" (350mm ) |
| Top Blade 2 cutting edges |
