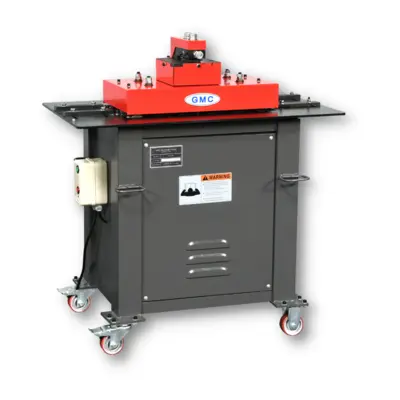

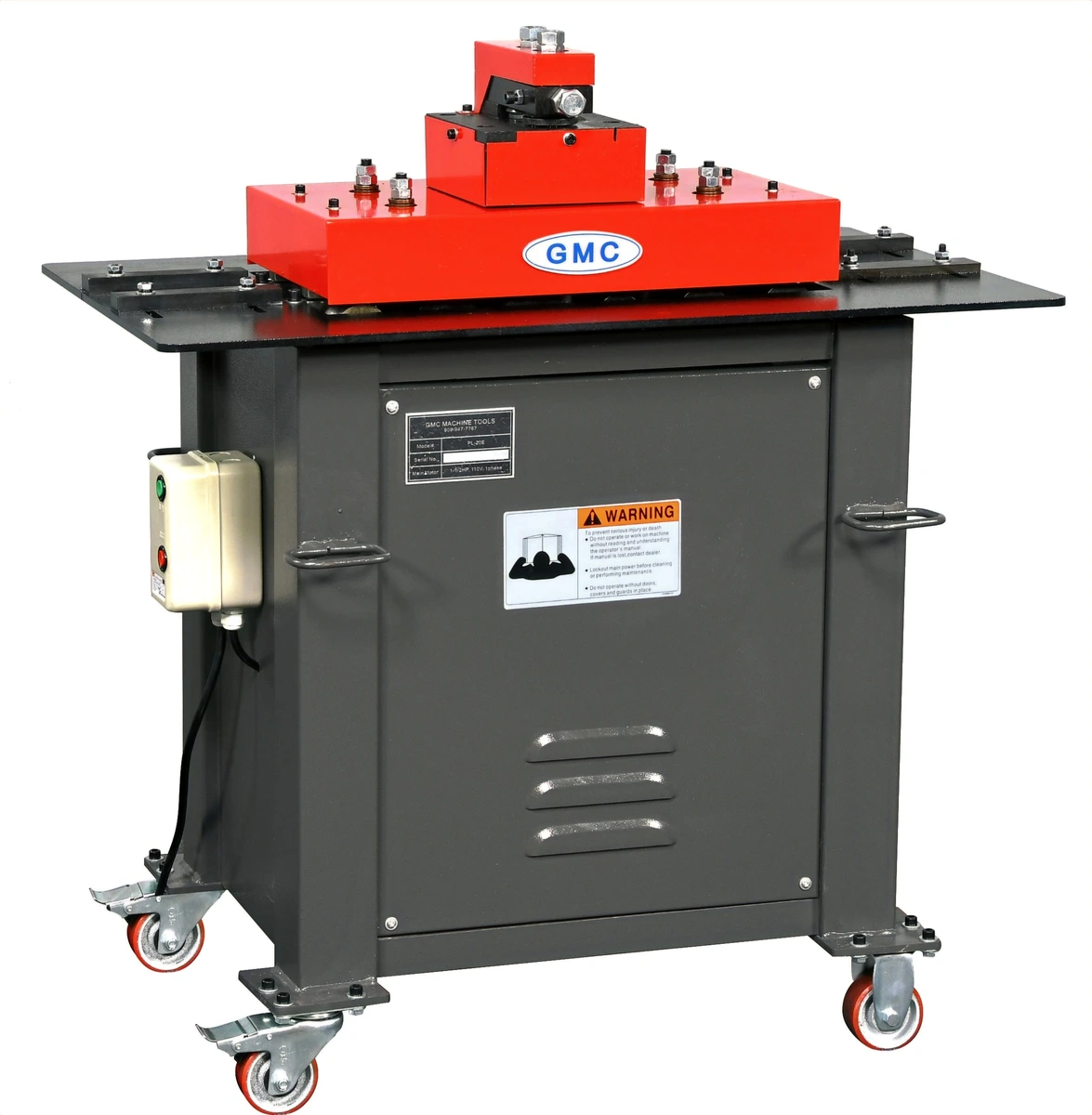

The Lockformer Pittsburgh Machine PL-16E from GMC Machine Tools is a versatile and reliable machine for sheet metal fabrication. This machine has a 16 gauge capacity and can create Pittsburgh seams, standing seams, and various other ductwork shapes. With 5 forming stations, this machine is capable of producing high-quality ductwork quickly and efficiently.
The Lockformer Pittsburgh Machine PL-16E is made with high-quality components and features a heavy-duty frame for durability. The machine is also equipped with a powerful motor to provide consistent and reliable performance.
Other features of the Lockformer Pittsburgh Machine PL-16E include:
16-gauge capacity
5 forming stations
Creates Pittsburgh seams, standing seams, and various other ductwork shapes
Heavy-duty frame for durability
Powerful motor for consistent and reliable performance
If you're looking for a machine that can handle a variety of ductwork shapes and produce high-quality results every time, the Lockformer Pittsburgh Machine PL-16E is the perfect choice. Order yours today and take your sheet metal work to the next level.

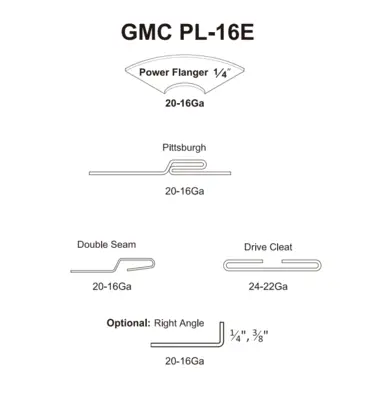

Pittsburgh lock: 20 Ga. - 16 Ga.
Double seam lock: 20 Ga. - 16Ga.
Drive cleat lock: 24 Ga. - 22 Ga.
Power flange 1/4": 20 Ga. - 16 Ga.
Depth of pocket: 1/2"
Feeding speed: 23 FPM
Main motor: 3 HP, 3 Phase 10 AMP
Prewired: 220VAC
Weight: 628 LBS
Machine dimensions (lxwxh): 43" x 27" x 48"
Shipping dimensions: 43" x 27" x 48"
