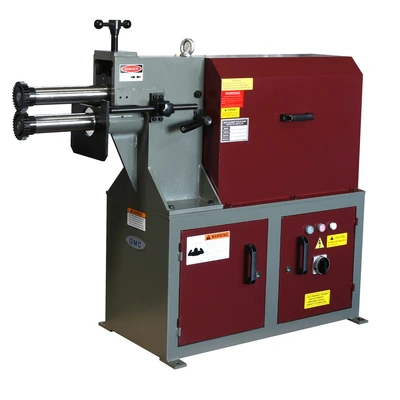

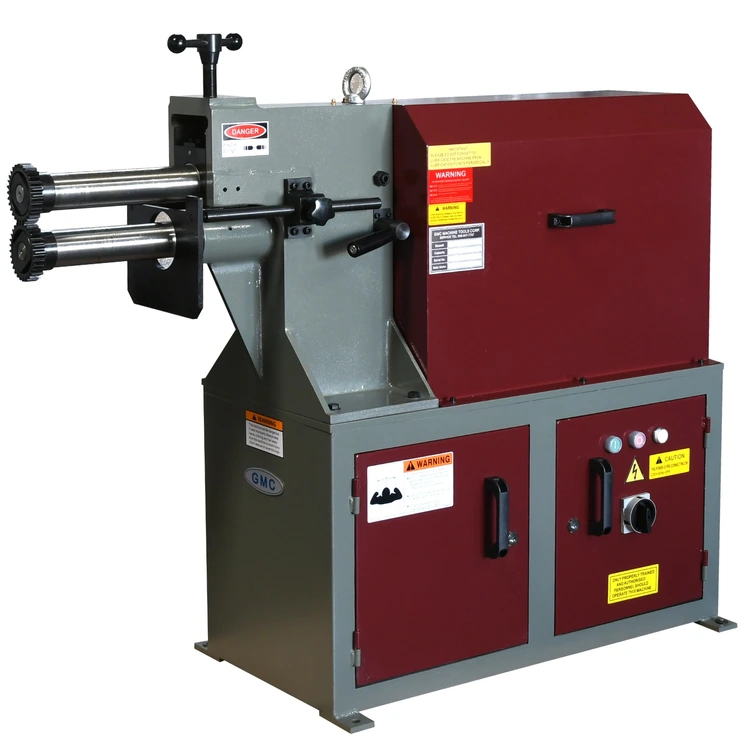

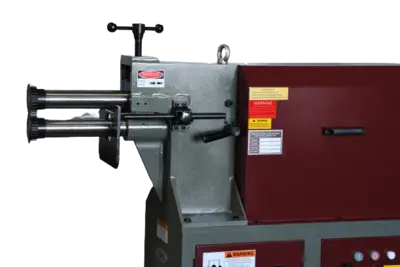

Power Bead Roller - BBM-08E
Have one to sell?
ConditionNew
1 available
New
Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging,Single Bead, flange, slitting , flattening, offset
ISO 9001 certified
Heavy Duty cast iron construction

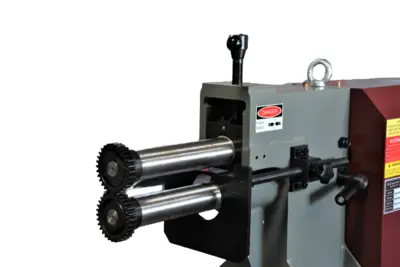

(4) sets of standard dies
S1 - Shear die
S2 - Step die (10mm)
S3 - Bead die (R6mm)
S4 - Step die (8mm)
Easy adjustment and operation
Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging, Single Bead, flange, slitting, flattening, offset
Mild steel: 8 Ga.
Stainless steel: 12 Ga.
Throat depth: 12"
Cylinder length: 9"
Cylinder speed: 15 RPM
Main motor: 3 HP 3 Phase
Prewired: 220VAC
Optional: 440VAC
Overall dimensions (lxwxh): 61" x 20" x 50"
Machine weight: 770 lbs.
