1/4" x 10" Hydraulic Sheet Metal Notcher with Fixed Angle
Have one to sell?
ConditionNew
1 available
New

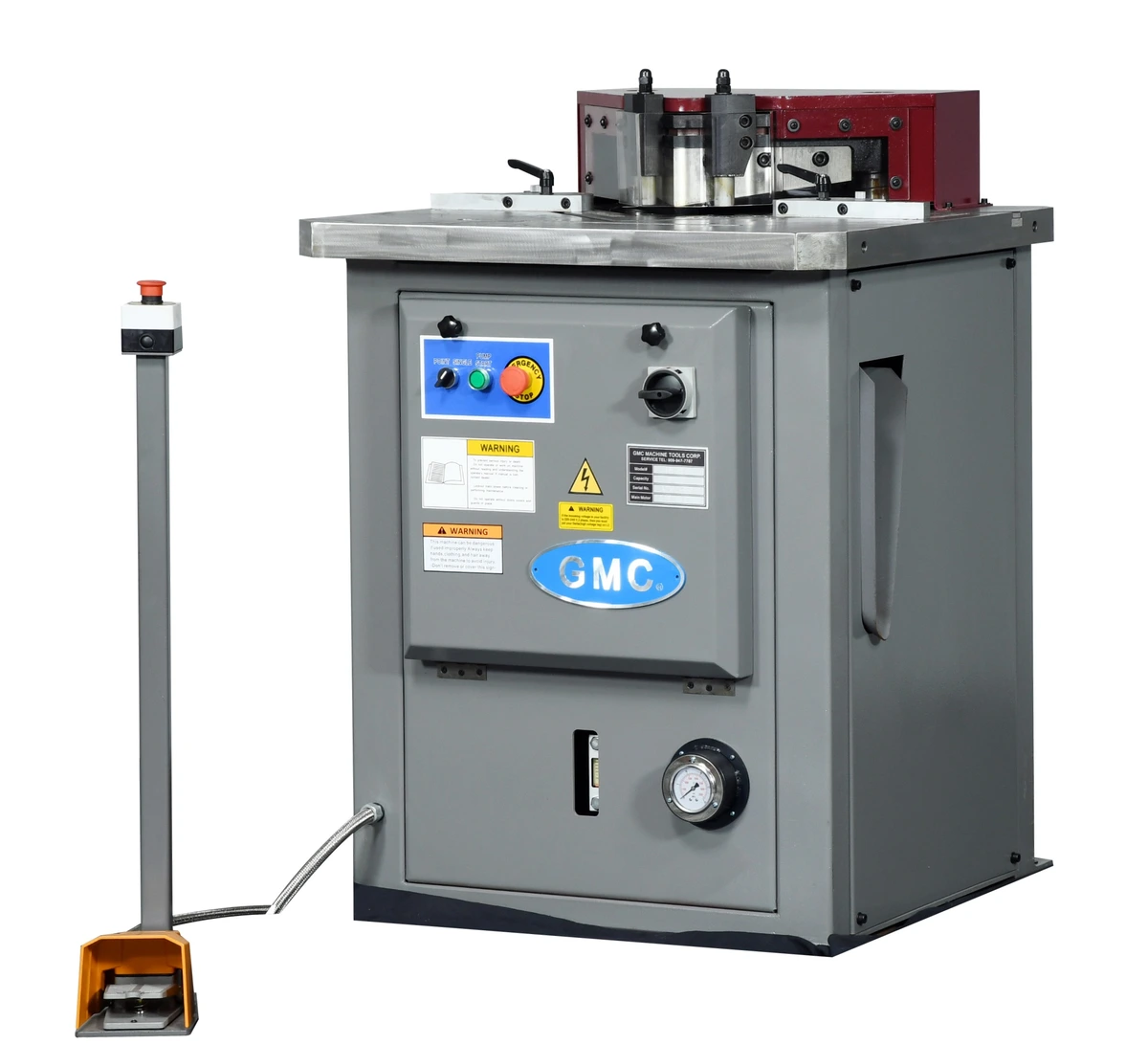

The GMC Hydraulic Notcher delivers clean and sharp corner cuts. You can notch up to a 1/4" thick sheet metal up to 12 strokes per minute. You can re-sharpen the blades repeatedly to improve the lifespan and save money.
ISO 9001 certified
Super large table
Milled table surface with engraved scales on left and right side of the table top

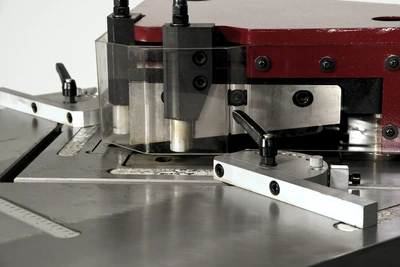

12” combination hold down and stop bars
All steel construction
Safety finger guards
(2) quick change gauges
Foot pedal control
Quiet hydraulic system
One year warranty
Min. notching thickness: 22 Ga.
Notching angle, fixed angle: 90 degree
Max. cutting lenth: 10"
Stroke per minute: 27
Table dimensions, l x w: 33" x 27"
Hydraulic oil tank capacity: 9 Gal. Shell #68HD
Main motor: 7 1/2 HP, 3 Phase, 25A
Prewired: 220VAC
Optional: 440VAC 220V 15A
Machine weight: 2650 LBS
Machine dimensions (lxwxh): 39" x 38" x 49"
Shipping dimensions, (lxwxh): 47" x 41" x 56"
Max. capacity: 1/4'' Mild Steel - Stainless Steel: 3/16"
