This machine is ideal for making stainless steel diamond plate patterns for truck doors, catering trucks, kitchens, toolboxes and other decoration applications. 4” x 4” diamond embossed pattern for stainless steel sheets is the standard pattern.
Diamond Forming Machine Standard Features:
- ISO 9001 certified
- 1-Year parts only warranty
- Emboss up to 4-foot stainless steel sheet metal x 20 Ga.
- 18” throat depth
- Steel welded framework
- High grade ball bearings

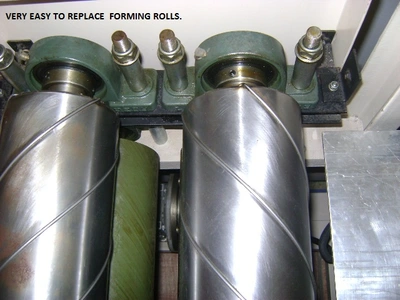

- 2 – Top forming steel rolls
- 2 – Bottom pressure rubber rolls

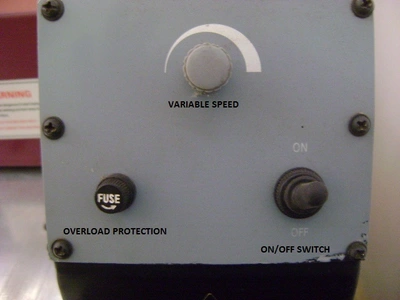

- Variable speed control
- Overload protection fuse
- Infeed table with side gauge
- Easy for one person operation
Optional Diamond Embossed Patterns:
- 2” x 2” Diamond Pattern ………….. Call for pricing
- 3” x 3” Diamond Pattern ………….. Call for pricing

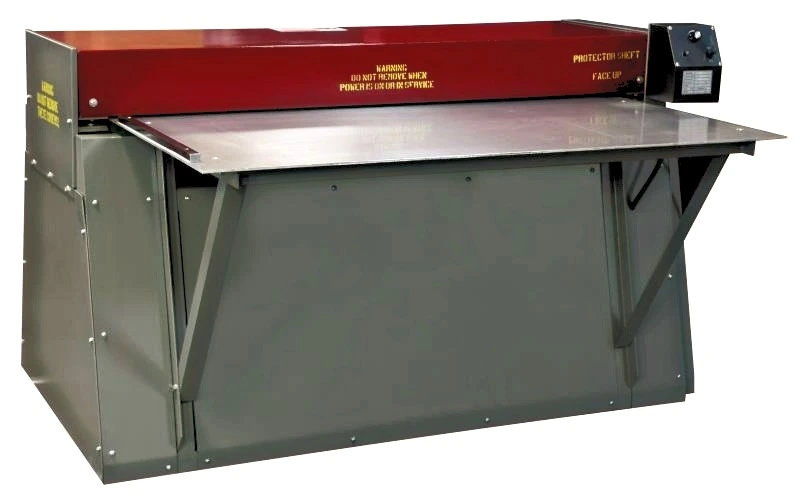

Model#: DFM-20
Max. material capacity (width): 4 foot sheets (50")
Diamond size: 4" x 4"
Max. material thickness: 20 Ga.
Variable speeds: 9-16 RPM
Motor: 2 HP - 110V / 60 HZ
Net weight: 1,650 lbs.
Dimensions: 63" x 53" x 43"
