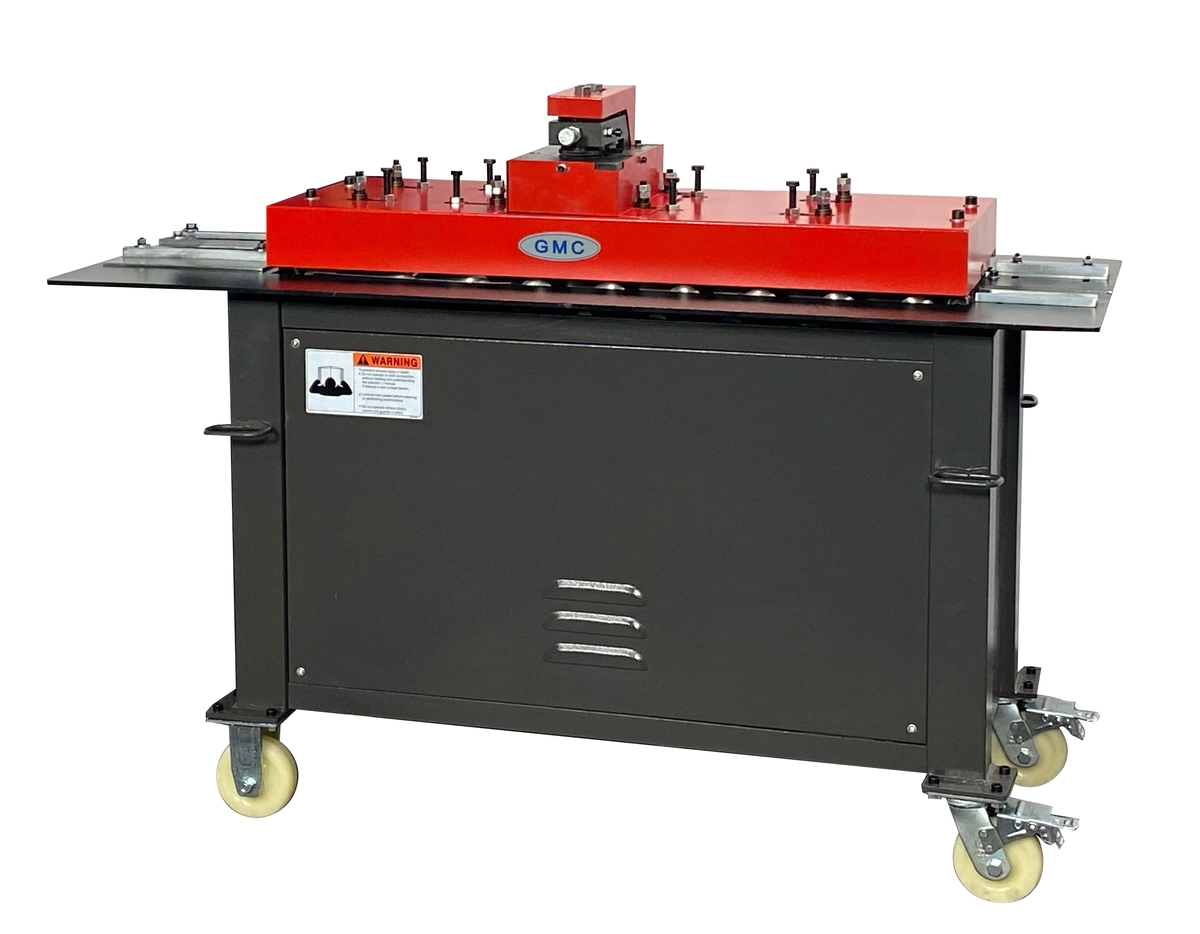

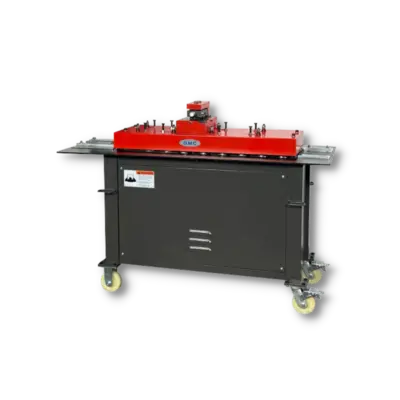

18 Ga. Pittsburgh Machine | Lock Forming Machine PL-18E
Have one to sell?
ConditionNew
1 available
New
ISO 9001 certified
4HP Heavy Duty AC main motor, 220V, 3 phase
Heavy welded all steel construction for maximum rigidity

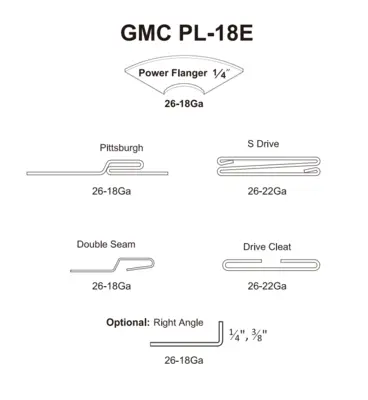

It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat), Drive Cleat, Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed.
Heavy welded all steel construction for maximum rigidity
ACME side can be operated at same time
One year warranty for parts
Pittsburgh lock: 26 Ga. - 18 Ga.
S drive lock: 26 Ga. - 22 Ga.
Right angle lock: 26 Ga. - 18 Ga.
Drive cleat lock: 26 Ga. - 22 Ga.
Double seam lock: 26 Ga. - 18 Ga.
Power flange 1/4: 26 Ga. - 18 Ga.
Depth of pocket: 1/2"
Feeding speed: 23 FPM
Main motor: 4 HP, 3 Phase 15 AMP
Prewired: 220VAC
Weight approx: 998 LBS
Machine dimensions (lxwxh): 60"x26"x46"
Shipping dimensions: 63"x27"x48"
