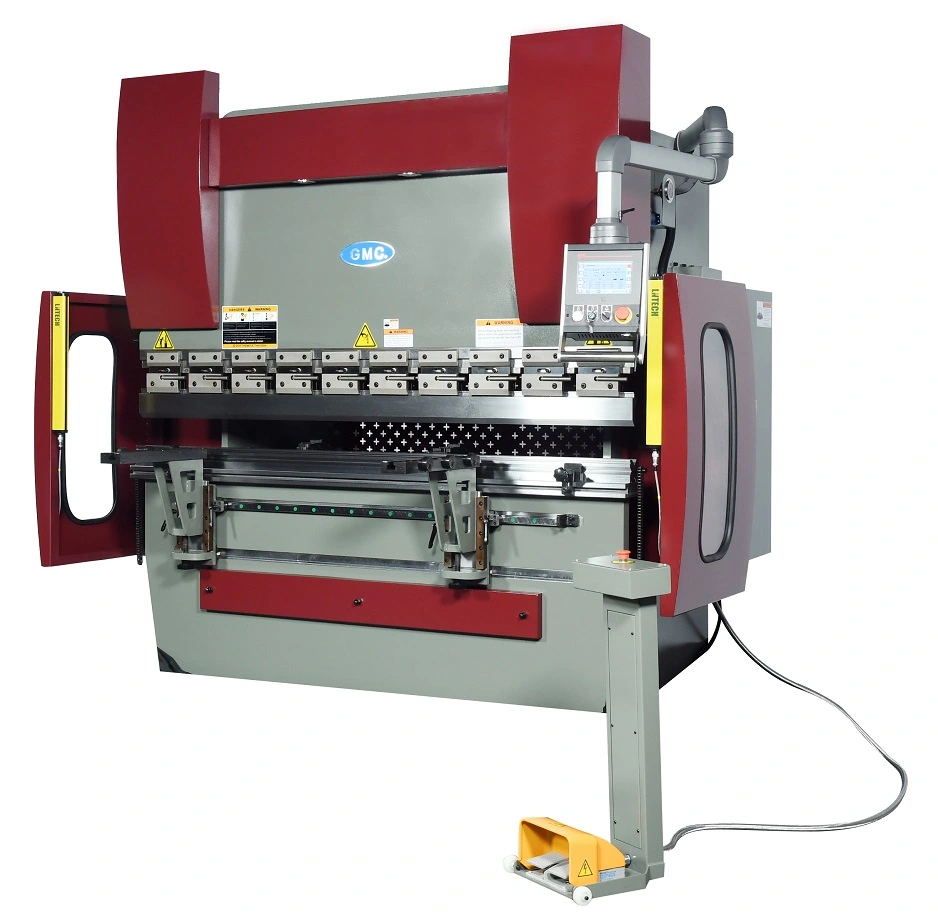

70-Ton 6’ CNC Press Brake with 3-Axis
Have one to sell?
ConditionNew
1 available
New
Our 70 ton press brake are equipped with a three axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
ISO 9001 certified
Meet OSHA and CE safety standard

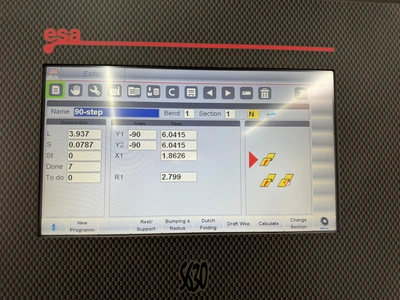

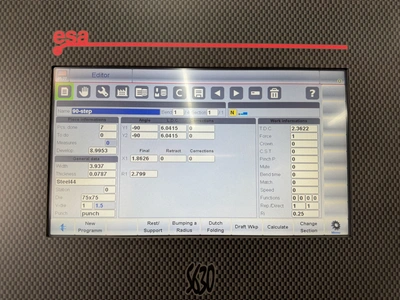

ESA (Italy) Model 630, 3 Axis CNC Controller
Die library, offline programming, stores thousands of programs
Programmable Angle/ Angle Correct

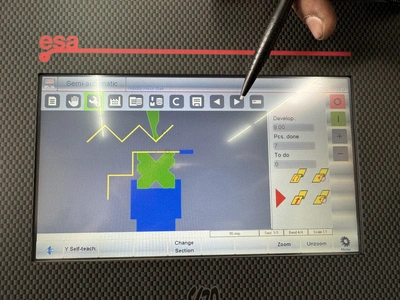

10” Touch screen
3 Axis CNC Graphic Controller
Y axis Ram with high precision linear encoder

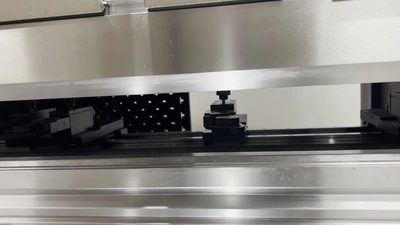

X servo Back gauge
R programmable Back gauge height

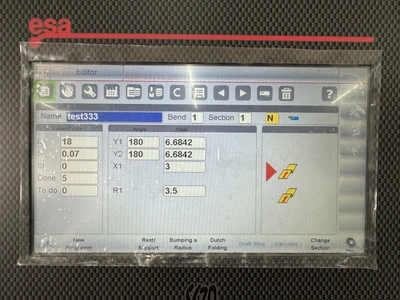

Line by line coding

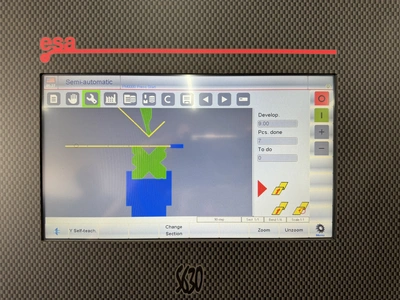

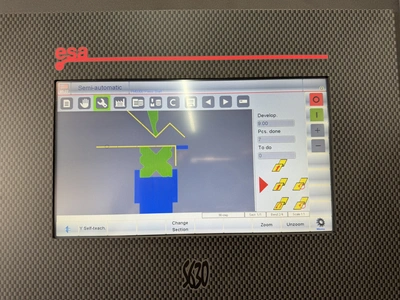

2D Graphic Drawing Mode
Bend Sequence Optimization for collision detection
Spread Length Calculation
Germany Rexroth hydraulic system
Yaskawa Servo motor and Drives
Schneider electrical components
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts
Maximum pressure: 70 Tons
Bending lenght capacity: 80" (6'8")
Distance between uprights (housing): 63"
Ram stroke travel: 6"
Cylinder travel adjustment (max): 3 1/8"
Table width: 6"
Distance between table and ram: 15 1/4"
Max stacked tooling height: 8-1/2"
Throat depth: 10"
Back gauge distance: 24"
Back gauge repeatability: .0039"
Y-axis repeatability: .0039"
Approach speed, inch / second: 3.14”
Working speed, inch / second: 0.35”
Return speed, inch / second: 2.36”
Main motor: 7-1/2 HP, 3 Phase 30 AMP; Prewired: 220VAC (+/- 10%)
Servo motor for back gauge: 1 HP, 3 Phase; 220VAC (+/- 10%)
Servo motor for bending angle setting: 1/2HP, 3 Phase; 220VAC (+/- 10%)
Hydraulic oil tank capacity: 52 Gal.
Recommended oil: Hydraulic Oil Shell #68HD
Machine weight: 8,650 LBS
Machine size, l x w x h: 103" x 63" x 87”
Shipping dimensions: 109"x66"x98"
