45-Ton 4’ CNC Press Brake – Small Hydraulic Press Brake
Have one to sell?
ConditionNew
1 available
New

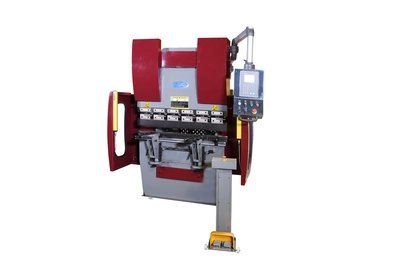

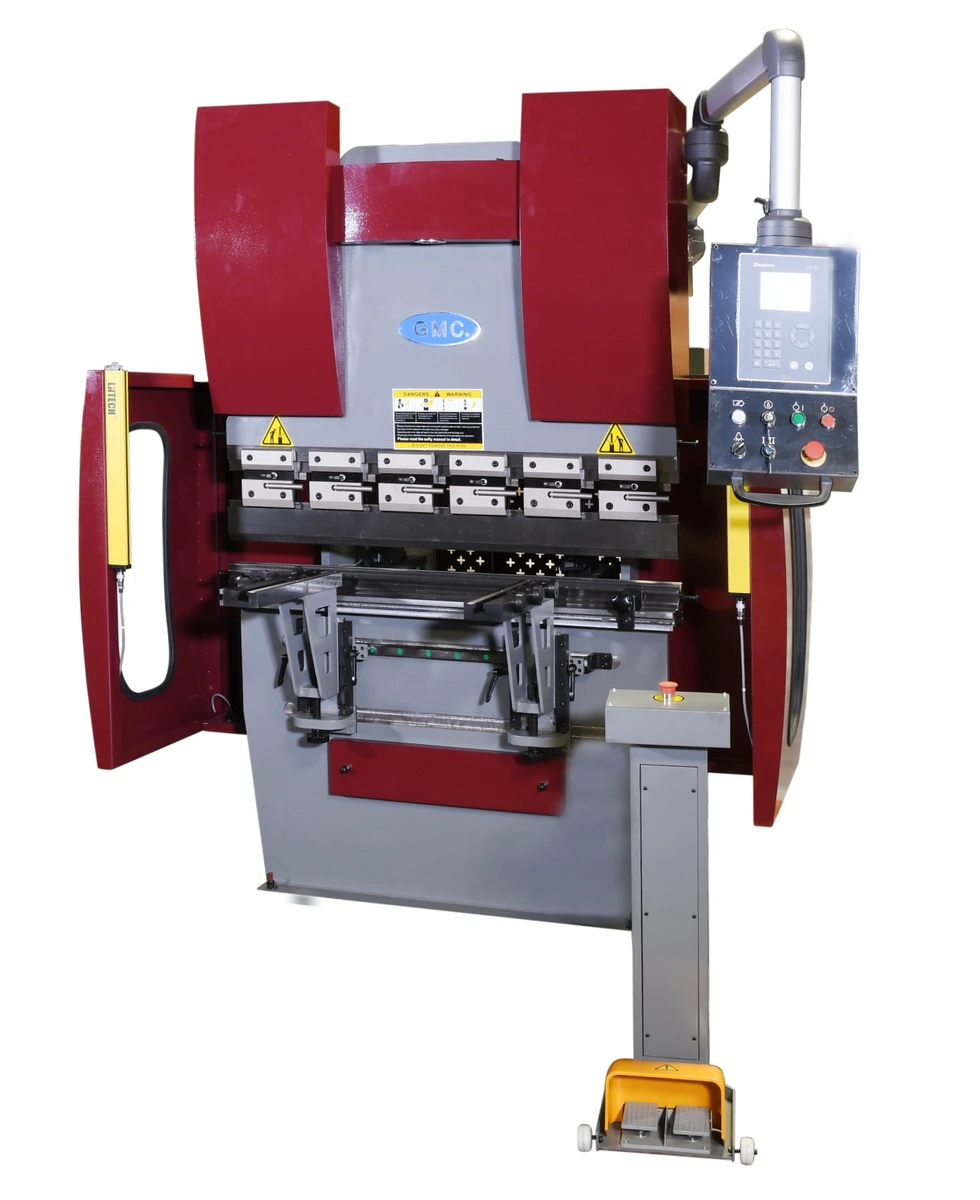

Our GMC HPB-4504 is a 45 ton press brake with two axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
ISO 9001 certified
Meet OSHA and CE safety standard

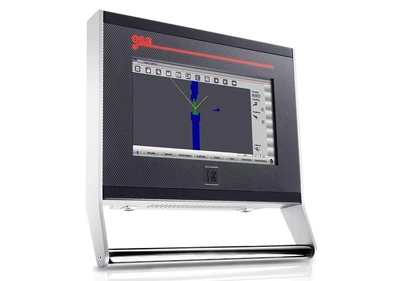

ESA (Italy) Model 625, 2 Axis CNC Controller
Die library, offline programming, stores thousands of programs
Programmable Angle/ Angle Correct
Germany Rexroth hydraulic system
Yaskawa Servo motor and Drives
Schneider electrical components
Hydraulic crowning
All steel construction for maximum rigidity

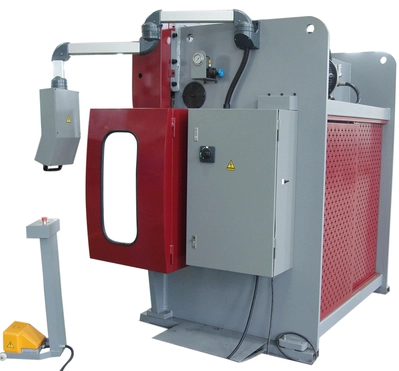

Hydraulic logic system centrally located and quiet
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts
Hydraulic Oil Shell #68HD
Maximum pressure: 45 Tons
Bending lenght capacity: 59 1/4" (4'1")
Distance between uprights (housing): 33 1/2"
Ram stroke travel: 6"
Cylinder travel adjustment (max): 2"
Table width: 6"
Distance between table and ram: 13"
Max stacked tooling height: 8-1/2"
Throat depth: 8 1/2"
Back gauge distance: 24"
Back gauge repeatability: .0039"
Y-axis repeatability: .0039"
Approach speed, inch / second: 3.54”
Working speed, inch / second: 0.78”
Return speed, inch / second: 2.75”
Main motor: 5-1/2 HP, 3 Phase, 25 AMP; Prewired: 220VAC (+/- 10%)
Servo motor for back gauge: 1 HP, 3 Phase; 220VAC (+/- 10%)
Servo motor for bending angle setting: 1/2 HP, 3 Phase; 220VAC (+/- 10%)
Hydraulic oil tank capacity: 25 Gal.
Recommended oil:
Machine weight: 6,150 LBS
Machine size, l x w x h: 71" x 56" x 81”
Shipping dimensions: 79"x63"x89"
