ISO 9001 certified
2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
Easy to operate in two positions; vertically and horizontally on its back
DRO -Digitally displays your exact position and ensures repeatability
Heavy Duty 3HP AC main motor

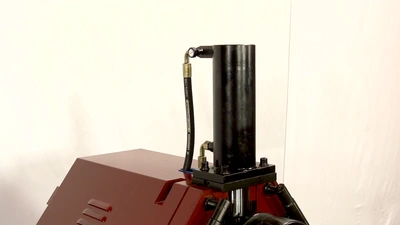

1 - Top forming roll (hydraulic driven)
2 - Driven bottom rolls
Robust, all steel and welded framework
Quiet, compact, hydraulic system that ensures precision and improves productivity
Adjustable pressure control valve
1-year parts only warranty and lifetime tech support (by video and phone)
Roll adjustment: Hydraulic Driven
Dia. of roller: 7.5"
Dia. of roller shaft: 2"
Roller speed: 16 RPM
Main motor: 3 HP 220VAC - Single Ph.
Dimensions: 40" x 35" x 65"
Weight: 1,120 LBS
Oil tank capacity (only fill up 90%): 7 Gal.
Recommended hydraulic oil: Texaco-Rando HD-68 Hydraulic Oil, Shell AW-68 Hydraulic Oil
