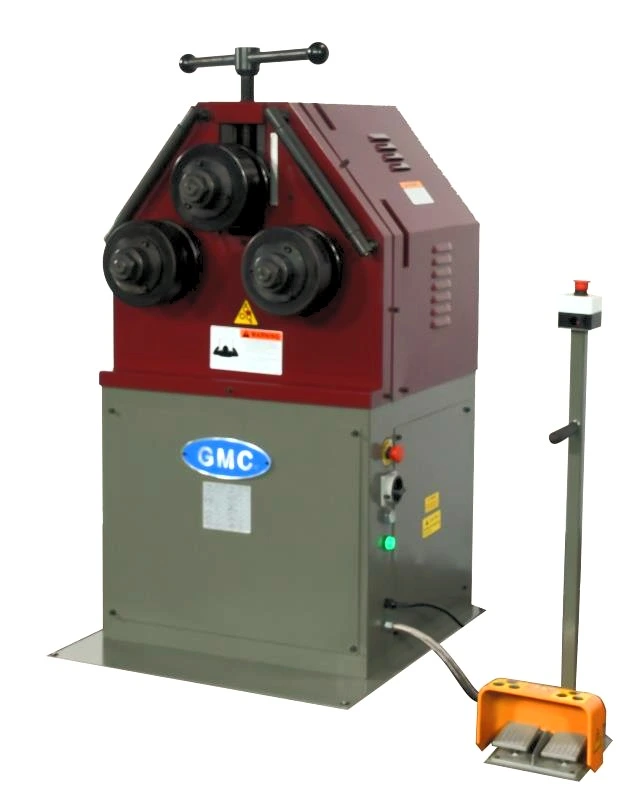

Angle Roll Bender with Manual Positioning
Have one to sell?
ConditionNew
1 available
New
ISO 9001 certified
2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
Heavy Duty 3HP AC main motor
1 top forming roll (manually driven)
2 driven bottom rolls
Robust, all steel and welded framework
1-year parts only warranty and lifetime tech support by video and phone

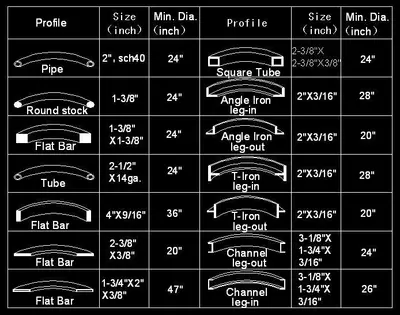

Pipe capacity: 2” schedule 40 / Min. Dia.24”
Tube capacity: 2-1/2”x14 Ga. (wall) / Min. Dia. 24”
Solid round tube: 1-3/8” / Min. Dia. 24”
Square tube: 2”x2”x3/16” (wall) / Min. Dia. 24”
Solid square tube: 1-3/8”x1-3/8” / Min. Dia. 24”
Solid flat bar: 2-3/8”x3/8” (wall) / Min. Dia. 20”
Angle flat bar: 2-3/4”x2”x3/8” (wall) / Min. Dia. 47”
Angle iron leg-in: 2”x3/16”(wall) / Min. Dia. 28”
Angle iron let-out: 2”x3/16”(wall) / Min. Dia. 20”
T-iron leg-in: 2”x3/16” (wall) / Min. Dia. 28”
T-iron leg-out: 2”x3/16” (wall) / Min. Dia. 20”
Channel leg-in: 3-1/8”x1-3/4”x3/16” / Min. Dia. 26”
Channel leg-out: 3-1/8”x1-3/4”x3/16” / Min. Dia. 24”

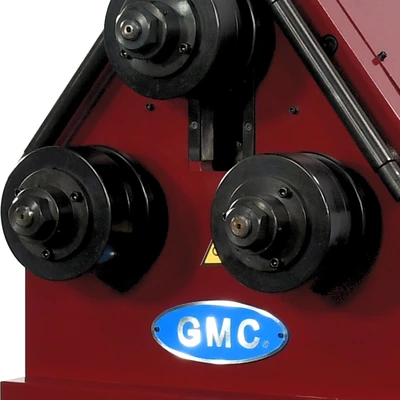

Dia. of roller: 7 1/2"
Dia. of roller shaft: 2"
Roller speed: 16 RPM
Motor: 3 HP, 220VAC 3-Phase; (Optional 440VAC)
Dimensions: 40" x 35" x 65"
Weight: 1,050 lbs.
