Hydraulic Rotary Draw Bender DB-60A
Have one to sell?
ConditionNew
1 available
New
GMC DB-60A, max 2” tube / 1-1/2” pipe, 1-1/2HP, 220V,1 phase
Taiwan Machine
ISO 9001 certified
NC-control for bending angle adjustment
LED degree indicator with automatic stop programming, to get as true reading of bending degree.
Up to 50 jobs memory; each job program contains 9 steps
Counter roller holder comes standard with quick adjustment
This easy to use hydraulic tube draw bender has an incredible capacity of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe
1-1/2 HP motor, 220VAC, Single Phase
Quick tooling changes

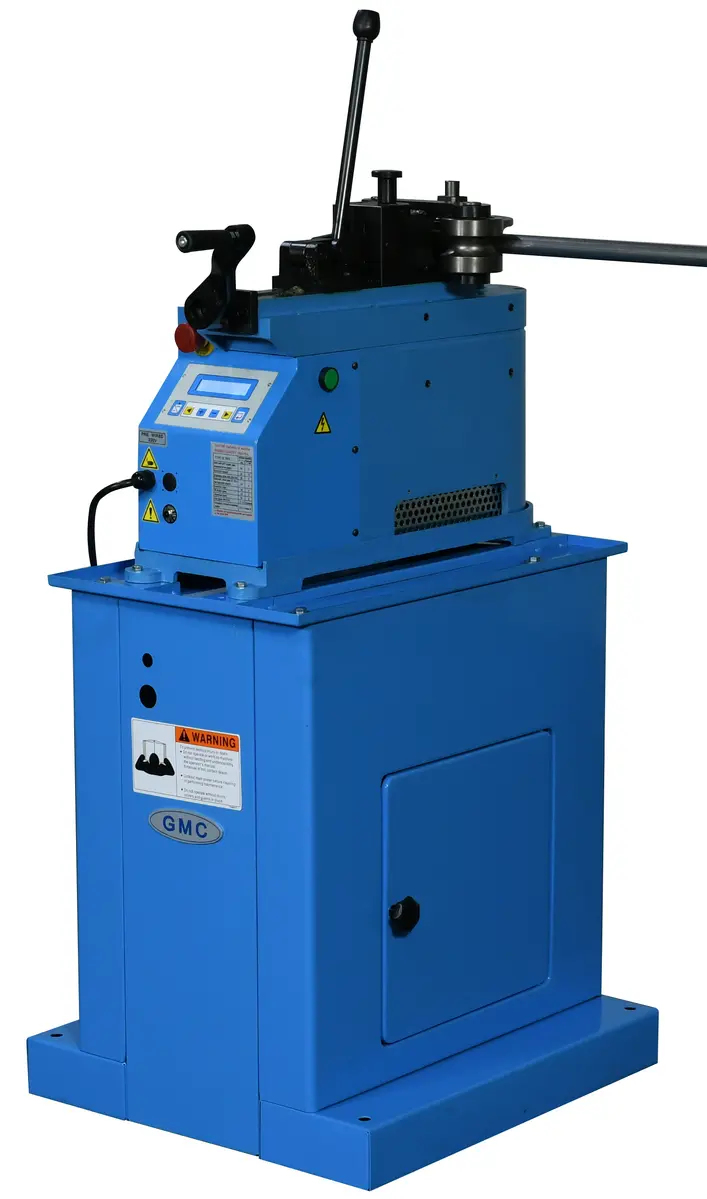

With deluxe stand
One year warranty for parts
Aluminum round Tube (wall thickness)
Capacity: ½”
Minimum clr: ¼”
Minimum od: 1”
Solid rod, mild steel: 2” (.125”)
Round tube, mild steel (wall thickness): 1-1/2”
Round pipe, mild steel, schedule 40: 1-1/2”(.125”)
Round tube, ss steel (wall thickness): 1-1/4”
Round pipe, ss steel, schedule 40: 2” (3/16”)
Maximum centerline radius: 6-1/2” CRL
Led programming: 50 job memory
Main motor: 1.5HP, 220V,1phase
Weight: 327 LBS
Machine dimensions, lxwxh: 27” x 9” x 51”
