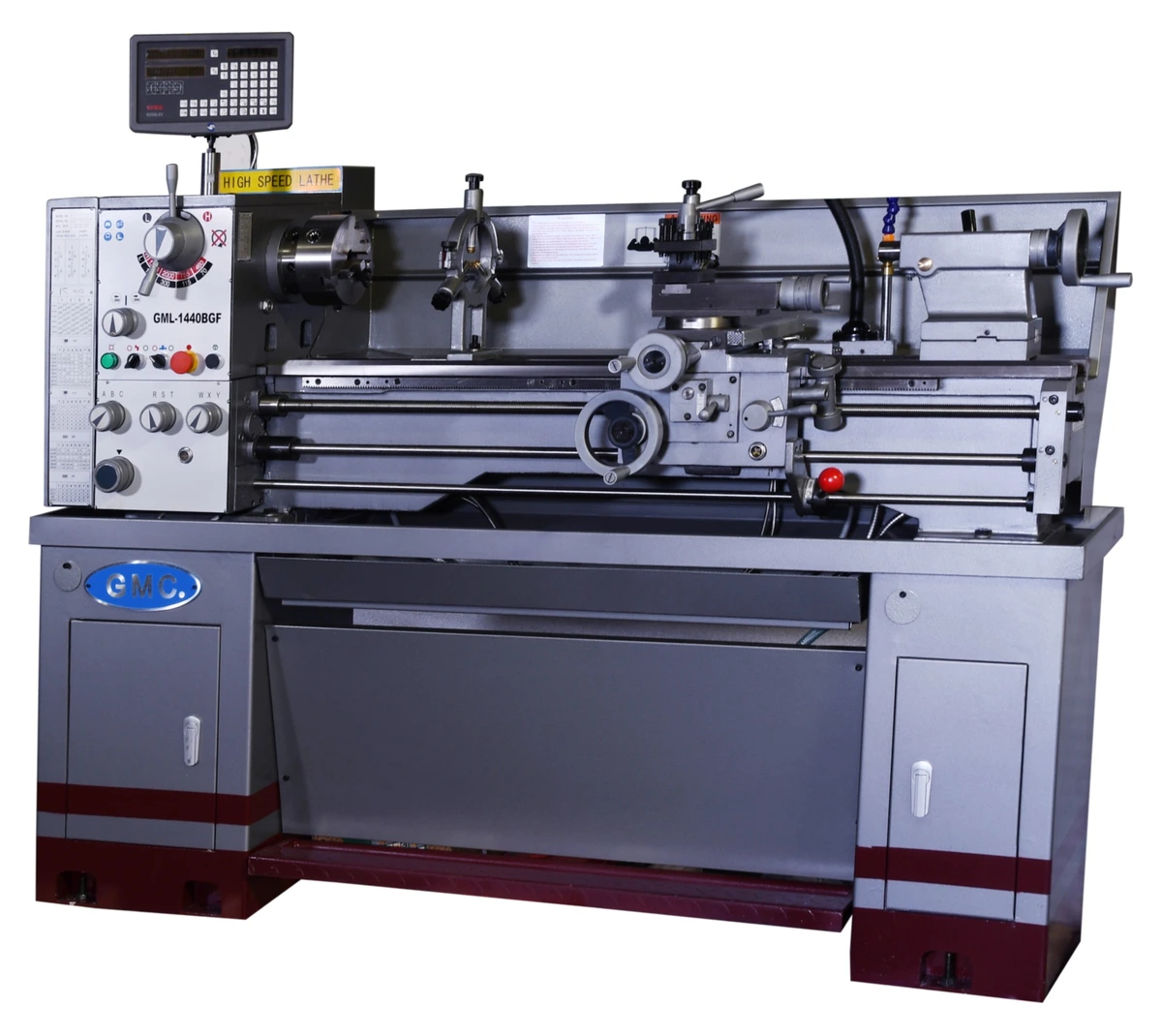

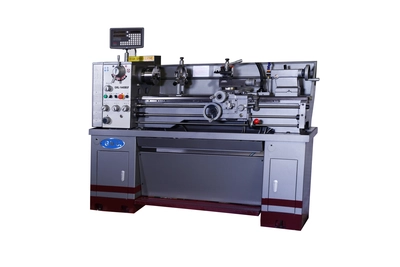

14" x 40" High Speed Geared Head Precision Toolroom Metal Lathe
Have one to sell?
ConditionNew
1 available
New
Our 14"x40" bench lathe is suitable for machining in metalworking machine shops, tool rooms, and repair shops. Ideal for making threads and turning metal parts like, shafts, spindles, sleeves, discs, weapon components, and many more parts. Our lathes are robust, reliable, easy to use, convenient to repair, precise, quiet, and have no vibration.
ISO 9001 certified
1-Year Parts Only Warranty
Lifetime Tech Support by phone and video
Full Geared-head precision Metal Lathe with foot brake
Quick-change gearbox with fast and easy threading set up
3 HP heavy duty main motor runs on 220V Single-Phase power
1.5” Spindle bore
Spindle Nose D1-4 Camlock
Heavy Duty guideway; 7.5” width
8 spindle speeds ranging from 70-2,000 RPM
56 kinds of imperial threads
44 kinds of metric threads

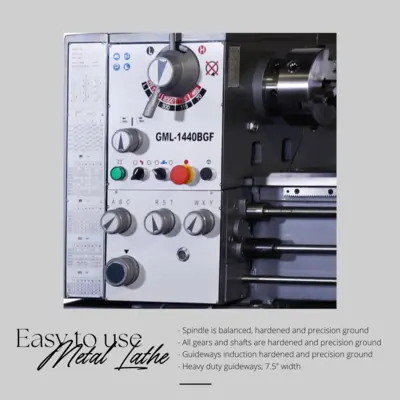

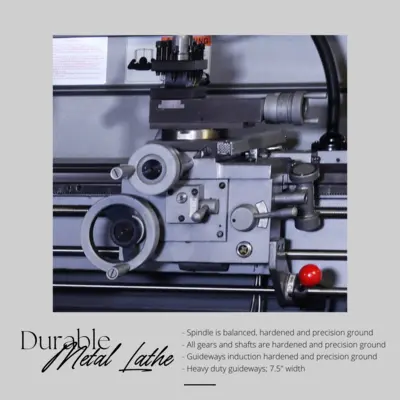

Spindle is balanced, hardened and precision ground
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box

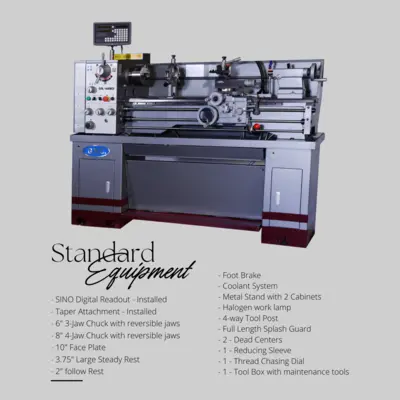

Comes equipped with:

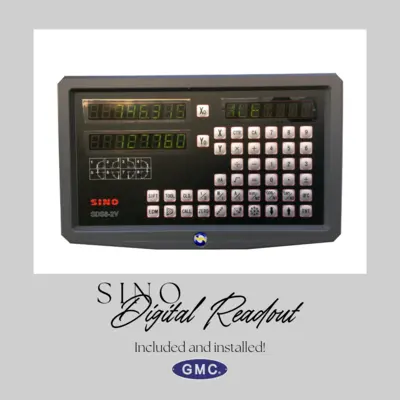

SINO (DRO) Digital Readout - Installed
Taper Attachment - Installed
6” 3-Jaw Chuck with reversible jaws
8” 4-Jaw Chuck with reversible jaws
10” Face Plate
3.75” Large Steady Rest
2” Follow Rest
Foot Brake
Coolant System
Metal Stand with 2 Cabinets
Halogen work lamp
4-Way Tool Post

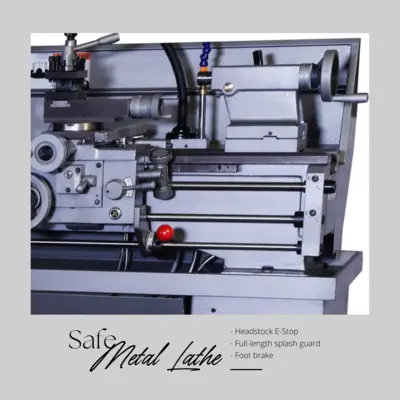

Full Length Splash Guard
2 – Dead Centers
1 – Reducing Sleeve
1 – Thread Chasing Dial
1 – Tool Box with maintenance tools
Max. Swing Over Bed: 14”
Max. length of workpiece: 40”
Max. length of cutting: 34”
Max. Swing Over Cross Slide: 8.25”
Center Height: 7”
Distance between centers: 40”
Bed Width: 7.5”
Spindle Nose: D1-4 Camlock
Spindle Bore: 1.5”
Spindle Taper Nose: MT5 (Morse Taper #5)
Spindle Taper Sleeve: MT3 (Morse Taper #3)
Range of Spindle Speeds: 70-2,000 RPM
Low Spindle Speeds: 70/115/190/300 RPM
High Spindle Speeds: 460/755/1255/2000 RPM
Steps of Spindle Speed: 8 steps
Range of Longitudinal Feeds: 0.00168” - 0.11750”/rev.
IPR, 24 kinds: Range of Cross feeds
0.00046” - 0.03231” /rev.: IPR, 24 kinds
Imperial Threads QTY. / Speed: 56 / 4-112 TPI
Metric Threads QTY. / Speed: 44 / 0.1-7.0 mm
Diametral Pitch threads QTY. / Speed: 32 / 16-112 DP
Module threads: 34 / 0.1 – 1.75 mm
Tailstock Quill Diameter: 1.5”
Tailstock Quill Taper: MT3 (Morse Taper #3)
Tailstock Quill Travel: 4”
Compound Slide Travel: 4.25”
Cross Slide Travel: 7.25”
Cross Feed QTY. / Speed: 0.014 – 0.380mm / rev
Leadscrew Diameter: 7/8”
Feed Rod Diameter: 3/4"
Max. Cutting Tool – 4 Way Tool Post: 5/8”

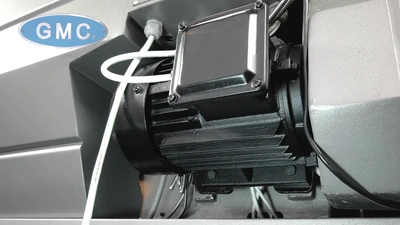

Main motor: 3 HP Three Phase
Power (prewired voltage): 220VAC
Full-Load Current Rating: 12 Amps.
Minimum Circuit Size: 15 Amps.
Connection Type: Pig Tail; hardwire or add plug
Coolant pump: 1/16HP, 220V, Single Phase

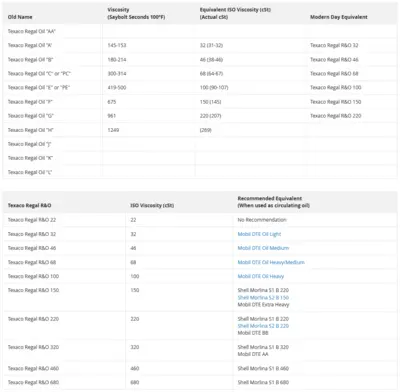

Headstock Capacity | Type: 4 Gal. | ISO 32 (eg. Texaco Regal R&O 32 or Mobil DTE Oil Light)
Gearbox Capacity | Type: 1.4 Qt. | ISO 68 (eg. Texaco Regal R&O 68 or Mobil DTE Heavy)
Apron Capacity | Type: 1.2 Qt. | ISO 68 (eg. Texaco Regal R&O 68 or Mobil DTE Heavy)
Net Weight (approx.): 1,730 LBS
Overall Dimensions: 70”L x 35”W x 59”H
Shipping Type: Wood Slat Crate
