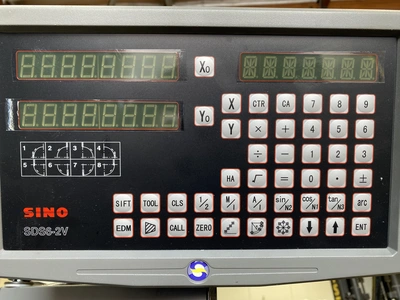

20 x 60" Bed Gap Metal Lathe | 2-Axis DRO | 3-1/8" Bore
Have one to sell?
ConditionNew
1 available
New

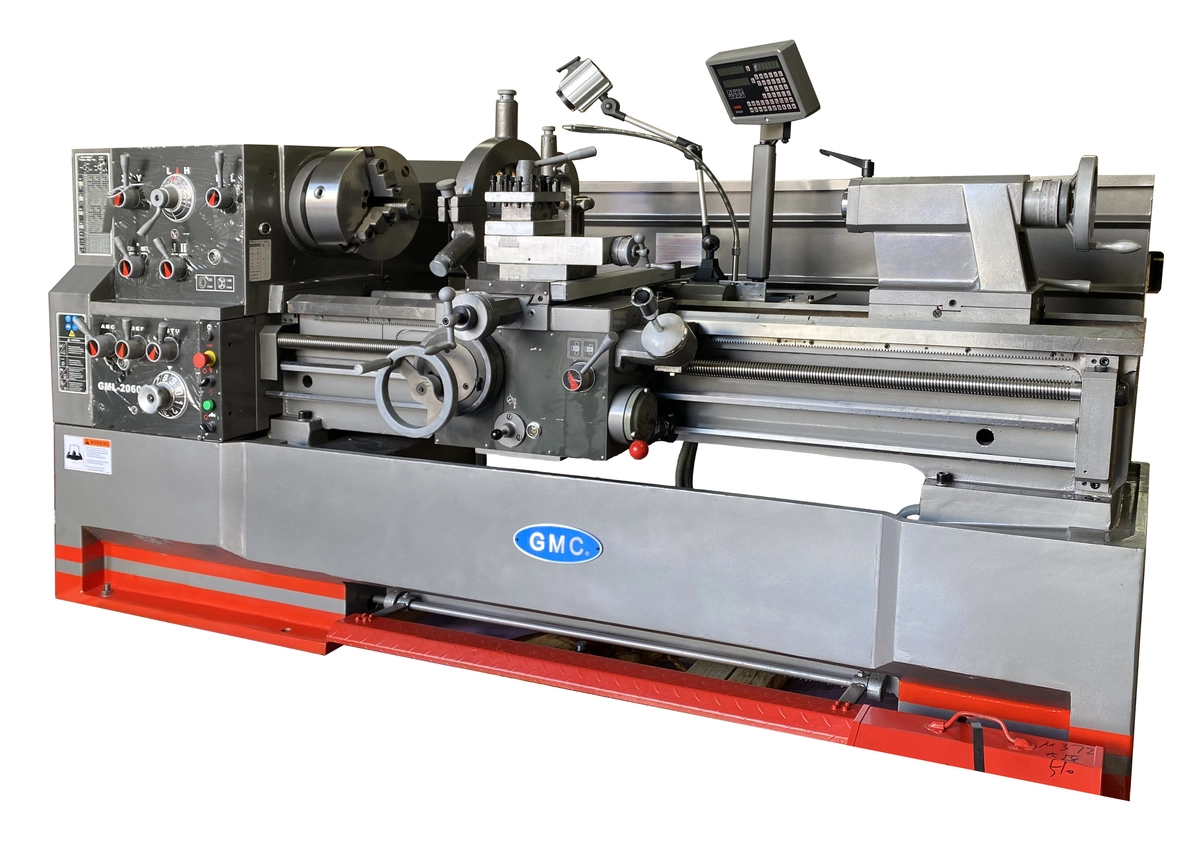

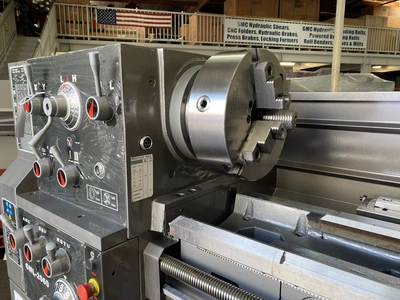

Bed Gap Metal Lathe # GML-2060, 20” x 60”, 3-1/8” bore, 10HP
ISO 9001 certified
1-Year Parts Only Warranty
Large spindle bore 3-1/8”
Spindle D1-8
Guideway width 12”
Main motor 10HP
16 spindle speeds from 25-1,800 rpm, 12 speeds
4-way rapid traverse on the carriage longitudinal and cross
60 kinds of inch threads, and 41 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
1 1/4" x 4 TPI
Diameter of tailstock quill 2-3/8”
Max. travel of tailstock quill
5-1/8”
Taper of tailstock quill center MT4
Main motor
10 HP 3 Ph.
Coolant pump
1/8 HP 3 Ph.
Net weight 5,750 lbs.
Overall dimensions, LxWxH 108" x 43" x 59"
Max. swing over bed: 20"
Max. length of workpiece: 60"
Max. swing over cross slide: 12 1/2"
Max. swing in gap: 29-1/8"
Width of bed: 12"
Effective length in gap to spindle: 6"
Effective length in gap to chuck jaws: 3 1/2"
Spindle bore: 3 1/8" | D1-8
Taper of spindle center: MT7
Spindle speeds: 25-1,800 rpm / 12 steps
Longitudinal feeds: 0.0011-0.063 IPR, 42 kinds
Cross feeds: 0.0003-0.018 IPR, 42 kinds
Inch threads: 2-112 TPI, 60 kinds
Metric threads: 0.1-14 mm , 41 kinds
Diametral pitch threads: 4-112DP , 50 kinds
Module threads: 0.1-7mm, 34 kinds
Max. travel of top slide: 5"
Max. travel of cross slide: 11 1/4"
Spindle length w/o chuck: 17-1/2"Leadscrew length X TPI

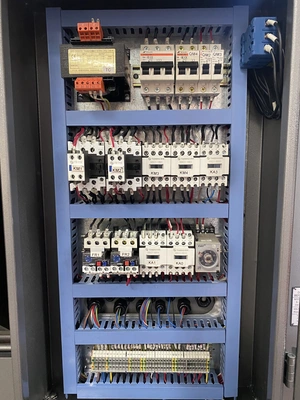

Prewired: 220VAC
Optional: 440VAC
