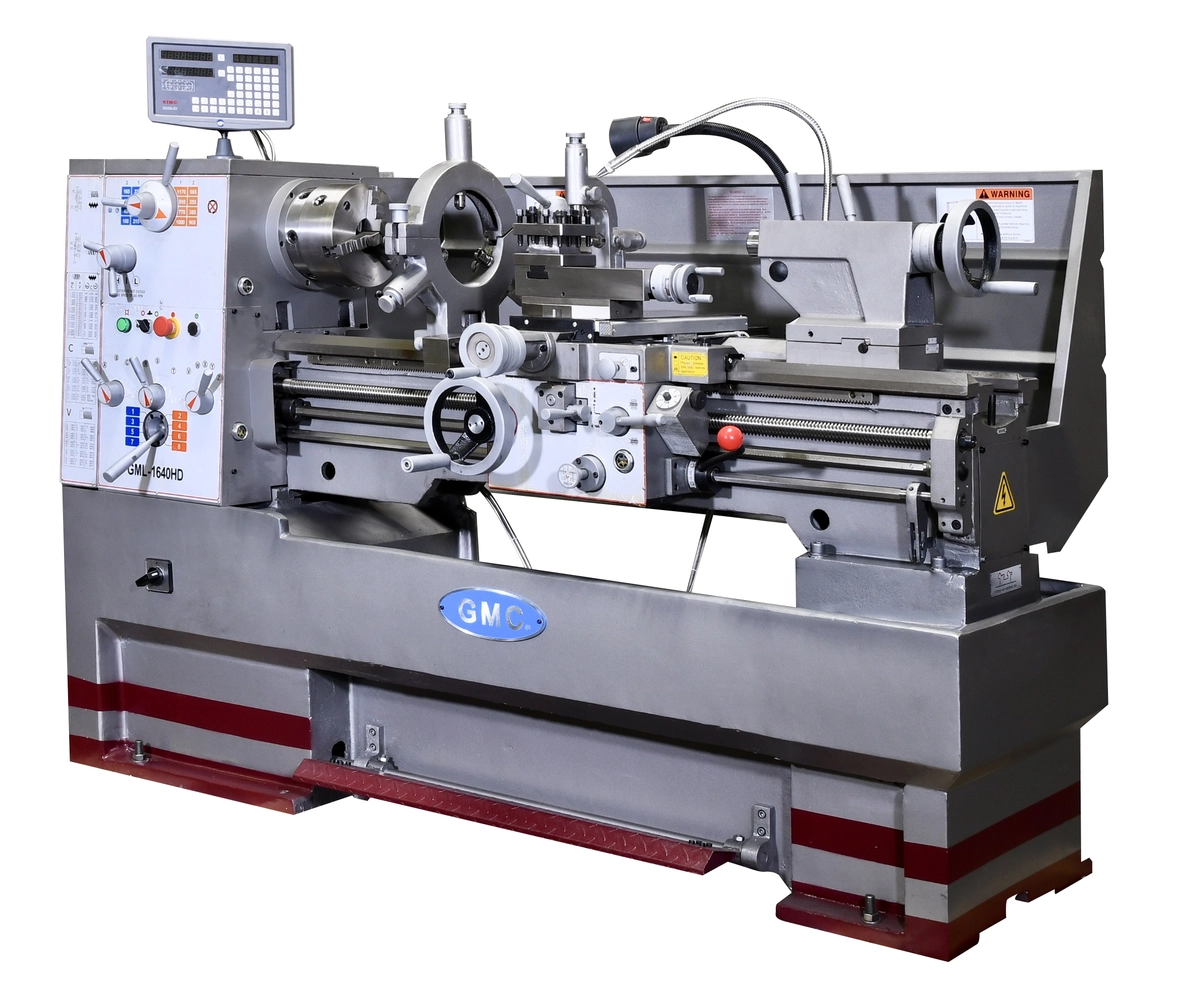

16" x 60" Metal Lathe with 2-Axis DRO
Have one to sell?
ConditionNew
1 available
New
ISO 9001 certified
Large spindle bore 2-1/16”
Heavy Duty spindle D1-6
One-piece solid cast iron machine base
Heavy Duty guideway width 10-1/4”
Heavy Duty main motor 6 HP

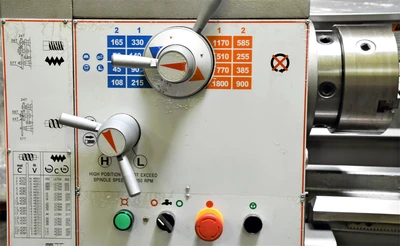

16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm
45 kinds of inch threads, and 39 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground

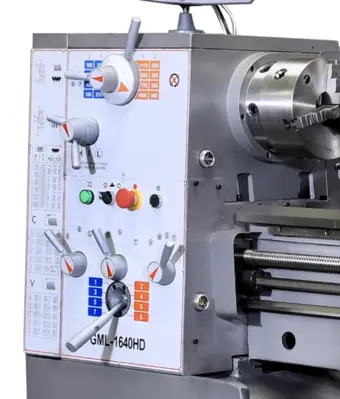

Automatic lubrication system in headstock and feed box
One year industrial warranty for parts
Max. swing over bed: 16 1/16"
Max. length of workpiece: 60"
Max. swing over cross slide: 10 1/4"
Max. swing in gap: 23 1/4"
Width of bed: 10 1/4"
Effective length in gap to spindle: 8 1/2"
Effective length in gap to chuck jaws: 3 1/2"
Spindle bore: 2 1/16" D1-6
Taper of spindle center: M.T. #6 (MT6/MT4 sleeve)
Spindle speeds: 45-1,800 rpm / 16 steps
Longitudinal feeds: 0.0018-0.07 IPR, 42 kinds
Cross feeds: 0.0009-0.03 IPR, 42 kinds
Inch threads: 70-2 TPI, 45 kinds
Metric threads: 0.2-14 mm , 39 kinds
Diametral pitch threads: 8-40 DP , 21 kinds
Module threads: 0.3-3.6 mm, 18 kinds

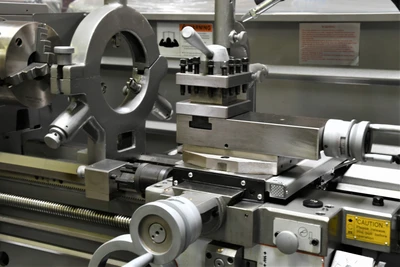

Max. travel of top slide: 4 1/4"
Max. travel of cross slide: 8 1/2"
Spindle length w/o chuck: 20 1/2"
Leadscrew length x tpi: 1 1/4" x 4 TPI

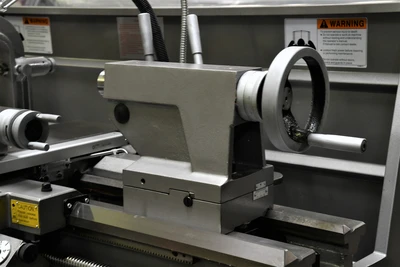

Diameter of tailstock quill: 2 1/16"
Max. travel of tailstock quill: 5"
Taper of tailstock quill center: MT4
Main motor: 6 HP, 220V/20A, 3 Phase
Coolant pump: 1/8 HP, 220V, 3 Phase
Net weight: 4,850 lbs.
Overall dimensions, lxwxh: 100" x 32.2" x 56"
