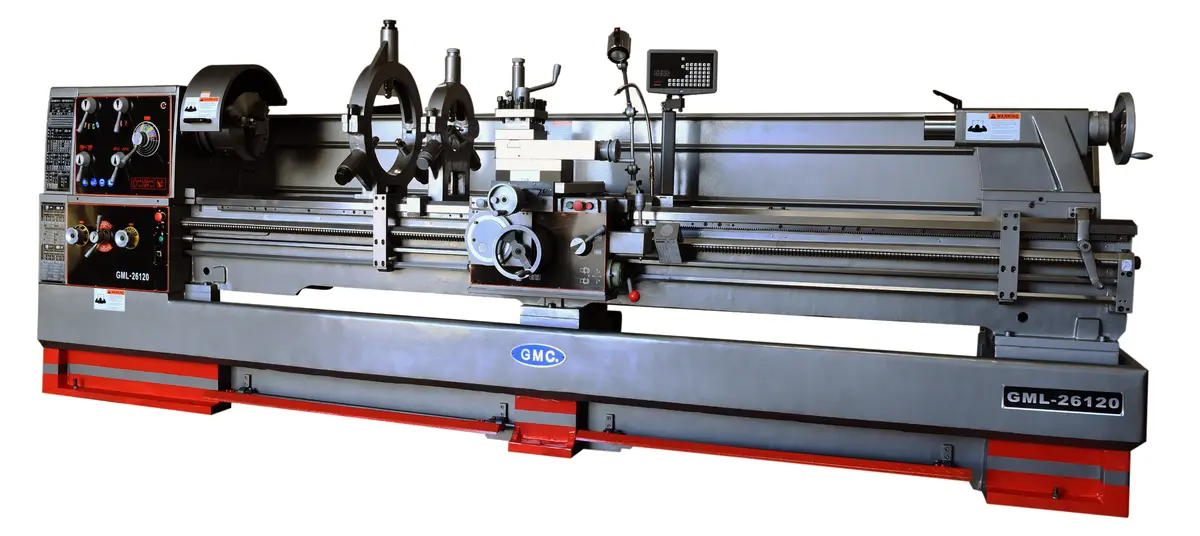

26" x 80" Metal Lathe with 2-Axis DRO
Have one to sell?
ConditionNew
1 available
New
26” x 80”, 4-1/8” bore, 15HP
ISO 9001 certified
Large spindle bore 4-1/8”
Heavy Duty spindle D1-8
Heavy Duty guideway width 16”
Heavy Duty main motor 15HP
4-Way Rapid Traverse
16 spindle speeds from 25-1,600 rpm, 16 speeds
54 kinds of inch threads, and 54 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts
Max. swing over bed: 26"
Max. length of workpiece: 80"
Max. swing over cross slide: 17 1/4"
Max. swing in gap: 35 3/8"
Width of bed: 16"
Effective length in gap to spindle: 9"
Effective length in gap to chuck jaws: 4 1/2"
Spindle bore: 4 1/8" D1-8
Taper of spindle center: M.T. #5
Spindle speeds: 25-1,600 rpm / 16 steps
Longitudinal feeds: 0.0016-0.055 IPR, 25 kinds
Cross feeds: 0.0008-0.027 IPR, 25 kinds
Inch threads: 80-7/16 TPI, 54 kinds
Metric threads: 0.45-120 mm , 54 kinds
Diametral pitch threads: 7/8-160 DP , 42 kinds
Module threads: 0.25-60mm, 46 kinds
Max. travel of top slide: 9"
Max. travel of cross slide: 14 1/2"
Spindle length w/o chuck: 20 1/2"
Leadscrew length x tpi: 1 1/4" x 4 TPI
Diameter of tailstock quill: 3 1/2"
Max. travel of tailstock quill: 9 1/4"
Taper of tailstock quill center: MT5

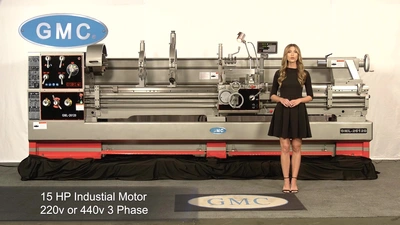

Main motor: , 15HP, 220V/40A or 440V/20A, 3 phase
Rapid traverse motor: 1HP, 220V or 440V, 3 phase
Coolant pump: 1/8 HP, 220V, or 440V, 3 phase
Net weight: 8,950 lbs.
Overall dimensions, lxwxh: 147" x 46" x 72"
