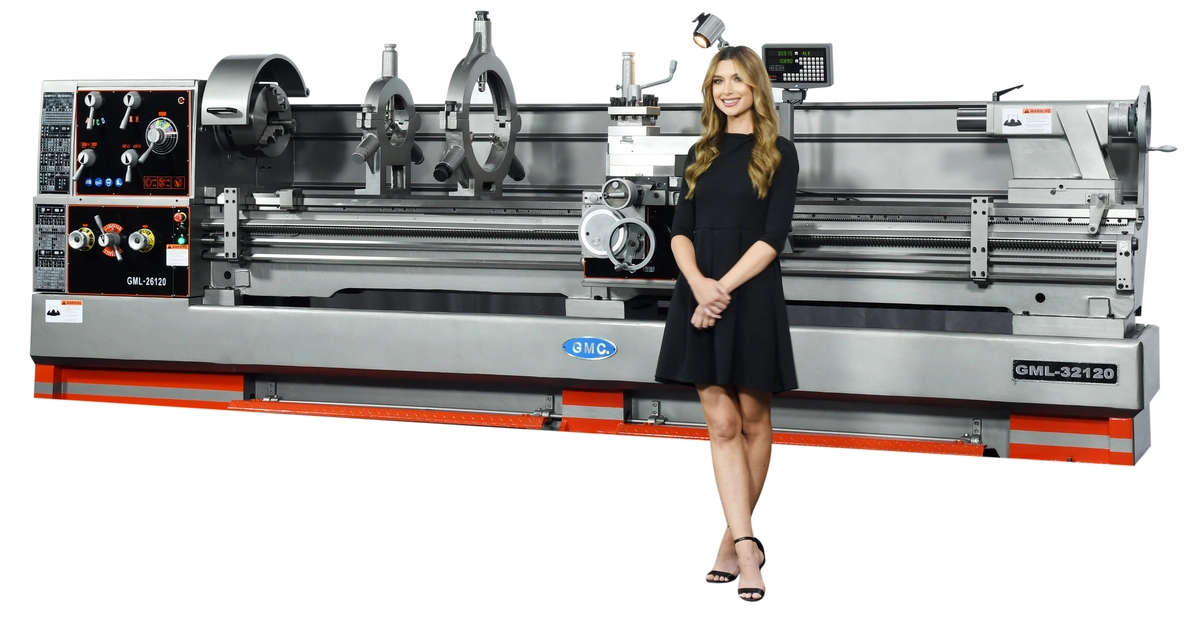

32 x 80” Metal Gap Bed Lathe | 4-1/8” Spindle Bore | GML-3280
Have one to sell?
ConditionNew
1 available
New
Heavy Duty Precision Gap Bed Lathe 32” x 80” 4-1/8” bore, 15HP Motor. Free Taper Attachment and SINO DRO installed!
ISO 9001 certified
Large spindle bore 4-1/8”
4-way rapid traverse on Longitudinal and cross ways
All dual inch/metric dials.
solid cast iron machine base
Heavy Duty main motor 15 HP
12 spindle speeds from 25-1,600 rpm
54 kinds of inch threads and metric threads
Threading and feeding rate change by levers
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
Tools box with leveling pads
One year warranty for parts
Max. swing over bed: 32”
Max. length of workpiece: 80”
Max. swing over cross slide: 22-7/16”
Max. swing in gap: 40-1/2”
Width of bed: 16”
Effective length in gap to spindle: 10”
Effective length in gap to chuck jaws: 7”
Spindle bore: 4-1/8” , D1-8
Taper of spindle center: MT#5 with1:20 reducing sleeve
Spindle speeds: 25-1,600 rpm / 12 steps
Longitudinal feeds: 0.0016-0.055 IPR, 60 kinds
Cross feeds: 0.0008-0.027 IPR, 60 kinds
Inch threads: 80-7/16”TPI, 54kinds
Metric threads: 0.45-120 mm , 54 kinds
Module threads: 0.25-60 mm, 46 kinds
Diameter pitch threads: 60-0.25 DP , 42 kinds
Max. travel of top slide: 9-1/8”
Max. travel of cross slide: 16-1/2”
Longitudinal rapid traverse: 18 ft / min.
Cross rapid traverse: 8 ft / min.
Diameter of tailstock quill: 3-1/2”
Max. travel of tailstock quill: 6”
Taper of tailstock quill center: M.T. # 5
Max. weight of workpiece: 2,000 LBS
4-way tool post size: 1” x 1”
Longitudinal leadscrew diameter / pitch: Diameter: 3” Pitch: 2 TPI
Main motor: 15 HP, 220V/40A / 440V/20A, 3 phase, prewired on 220V
Rapid traverse motor: 1/3 HP, 220V/440V, 3 phase, prewired on 220V
Coolant pump motor: 1/8 HP,220V/440V, 3 phase, prewired on 220V
Machine weight, approx.: 9,350 LBS
Overall dimensions, lxwxh: 146” x 48” x 67”
