9" x 49" Vertical Mill | Metal Milling Machine with 2-Axis DRO
Have one to sell?
ConditionNew
1 available
New

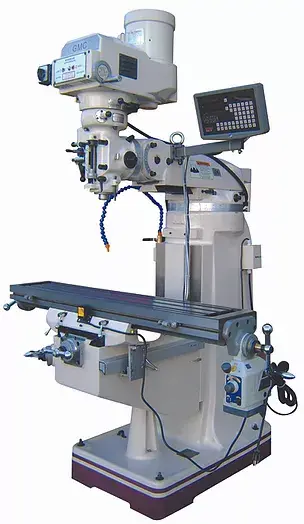

Our 9" x 49" metal milling machine aka vertical milling machines come fully equipped with a SINO digital readout and power feed. Our mill machines are rigid, made of “Meehanite” casting; hardened and grounded dovetail guideways. If you're looking to add a long lasting piece of equipment to your machine shop, this is it. These vertical mills are made to last and we provide parts and service to reduce or eliminate downtime.
Taiwan Mill
“Meehanite” Casting
“Turcite B” Coating on X/Y ways
ISO 9001 certified
GMM-949V has variable spindle speeds from 70-4,300 rpm
Heavy duty 3 HP AC spindle motor, 3 phase ( for ideal of tapping jobs, we strongly recommend to take 3 phase mill with phase converter for single phase conversion )
Heavy Duty “Meehanite” casting
Hardened & ground dovetail guideways
Hand scraped precision ways
Hardened & ground table and ground table T-slots
Precision ground ACME Leadscrews
Chromed ground quill ( spindle )
Chromed dials
Adjustable ways
Hand brake on mill head
Tilting & rotating head
Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
One shot lube system
front and rear rubber chip guards
(1) manual draw bar
Tool box with tools
Power source 220V , 3 phase
One year industrial warranty for parts
Table size: 9" x 49"
Table load capacity: 650 lbs.
X axis travel: 35 1/2"
X travel with power feed: 31 1/2"
Y axis travel: 12"
Z axis travel: 17"
Spindle taper type: R8
Ac spindle motor: 3 HP, 220V/10A - 440V/5A
Spindle speeds: 70-4,300 RPM (variable speeds)
Quill (spindle) diameter: 3 3/8"
Quill (spindle) travel: 5"
Ram travel: 12"
Table t-slot size: 5/8" x 3 slots
Head swivel, r/h, l/h: 90 degree
Net weight: 2,650 lbs.
