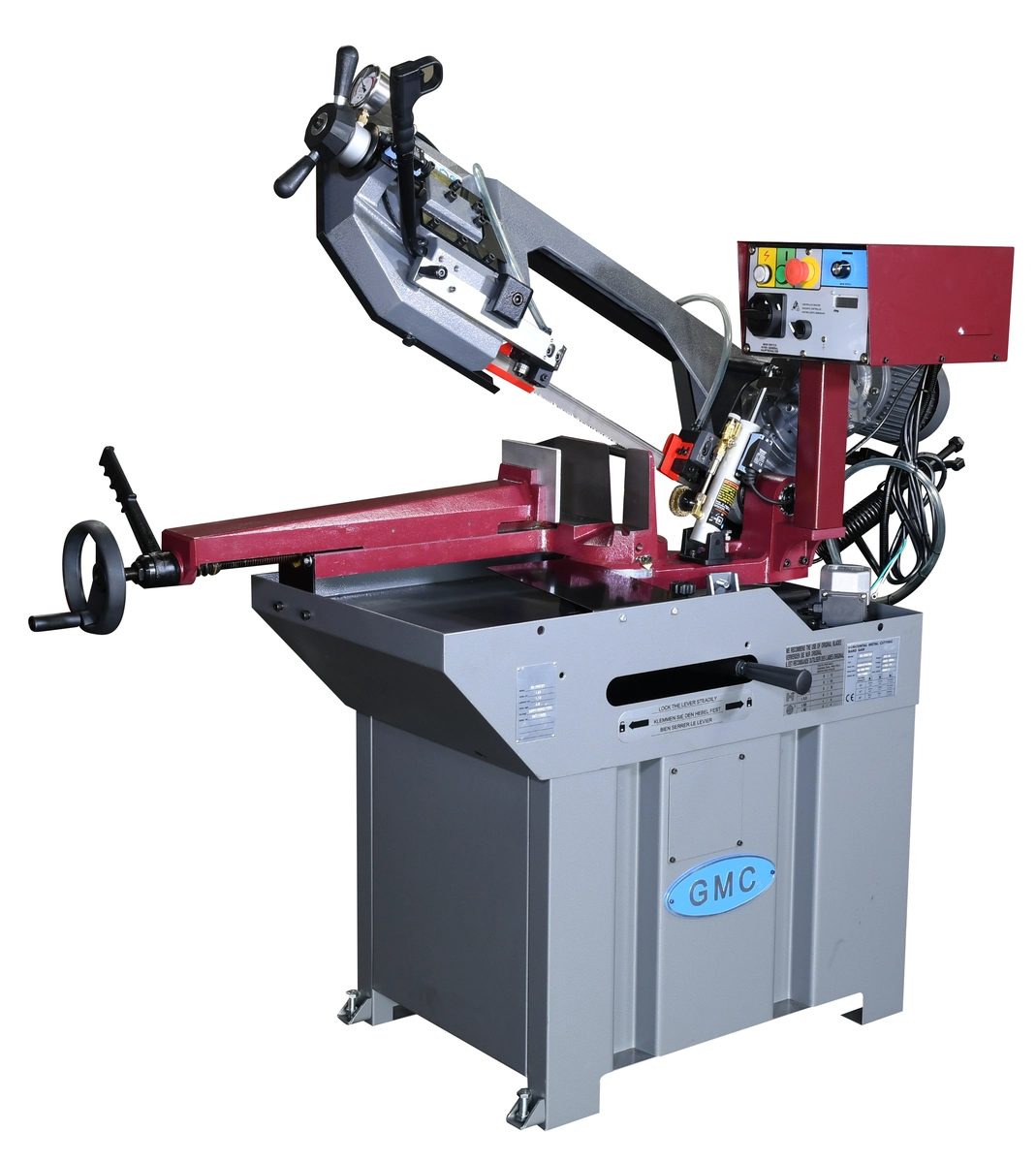

9" x 14" Metal Band Saw with Variable Speed
Have one to sell?
ConditionNew
1 available
New
9” round capacity, miter head, variabe speeds, 1-1/2HP
Taiwan Saw, ISO 9001 certified
Max. capacity of 9” OD
Variable blade speeds from 66 to 280 fpm with a dial to set up speeds
Gear-driven transmission makes the machine more reliable & rigid
Mitering head swivels up to 60° to the right
Two operation modes: manual cut and cycle cut
Powerful flood coolant system
Cast iron mitering head and bow without vibrations
8 precision ball bearing blade guides make a clean, high-quality cut
Patented blade tensioning gauge makes it simple to get the tension right
Safety device for saw blade breakage
Power source: 220V/1 phase
One year industrial warranty for parts
Cutting capacity round @ 90° /45° /60° r rectangular @ 90° /45°r square @ 45° /45°r /60°r: 8.91”/5.9”/3.54” 10.59x4.33/7.87x4.92 8.66 x 5.7 x 3.34
Saw blade size: 1” x 0.035”x 96.85”
Blade speeds: 66 - 280 FPM variable
Power down feed rate: Variable
Dual miter cut degree: 0-60°R & 0-45°L
Blade drive motor: 1-1/2 HP, 220V, Single phase
Machine weight: 750 LBS
Machine dimensions l x w x h: 69”x44”x45”
