8' x 1/4" Hydraulic Plate Shear - Electric Backgauge
Have one to sell?
ConditionNew
1 available
New
We have prioritized both performance and safety in the HS-0825E. This machine offers exceptional cutting power, precision, and durability. Invest in the Heavy-Duty Hydraulic Shears HS-0825E and experience enhanced productivity and superior results in your metal cutting operations.
ISO 9001 certified
Taiwan machines
36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
Quick Change Blade Gap Adjustment (BGA), with gap dial
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened
to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
Cutting capacity mild steel: 8’ x 1/4"
Stainless steel: 8’ x 10 Ga.
Blade length: 8' 2" = 98"
Strokes per minute: 10-15
Throat depth: 18"
Worktable height: 34 1/2"
Front support arm: 24"

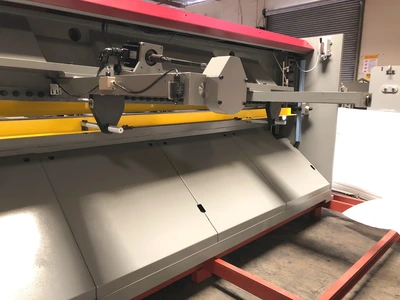

Back gauge: 36" SIKO powered B.G.
Blade rake angle: 2 degree
Oil tank cap.: 32 Gal
Main motor: 20 HP, 220V/70A - 440V/35A, 3 Phase
Powered b.g. motor: 1 HP, 220V/440V, 3 Phase
Machine weight: 12,850 LBS
Machine dimensions: 157" x 99" x 65"
