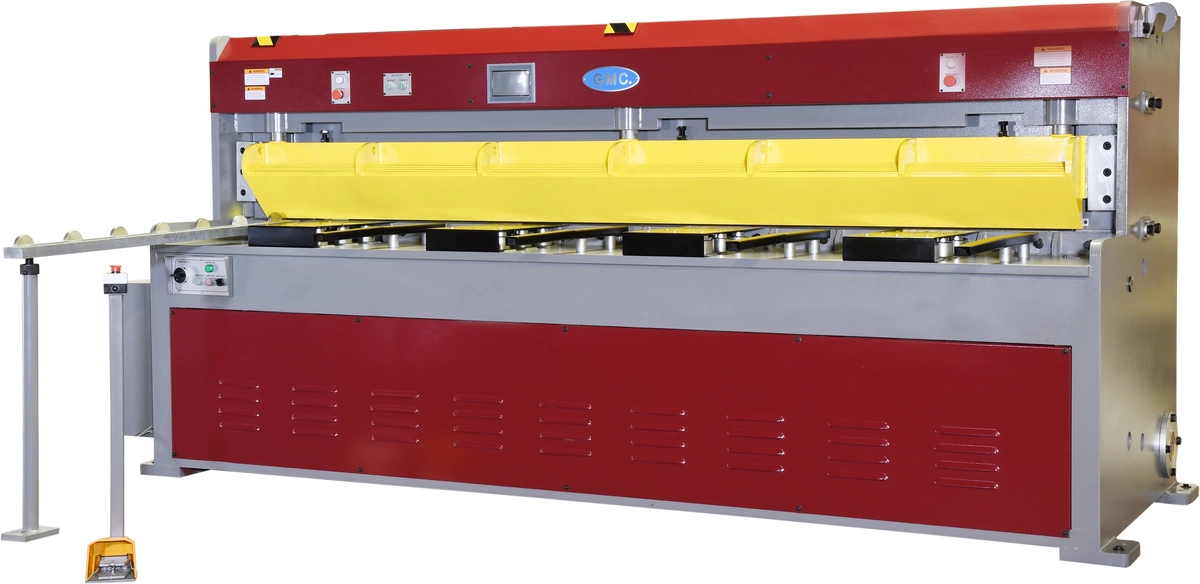

120" x 1/4" Hydraulic Guillotine Plate Shearing Machine
Have one to sell?
ConditionNew
1 available
New
This 120" wide hydraulic shear can handle up to a 1/4" mild steel. This heavy duty machine will trim 10 foot sheets with ease!
ISO 9001 certified
comes with ESA CNC control for Back gauge, programmable
CNC programmable Blade Gap Adjustment
CNC programmable Rake change
CE standard & Siemens electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
Cutting capacity mild steel: 10’ x 1/4"
Stainless steel: 10’ x 3/16"
Blade length: 10' 6"
Strokes per minute: 10-12
Throat depth: 20"
Worktable height: 39"
Front support arm: 24"
Nc back gauge: 36” ESA CNC back gauge
Blade rake angle: 0.5°- 2.5°
Oil tank cap.: 50 Gal.
Main motor: 15 HP , 220V/70A, 3 phase
Powered b.g. motor: 2 HP , 220V, 3phase
Machine weight: 19,850 LBS
Machine dimensions: 157" x 106" x 75"
